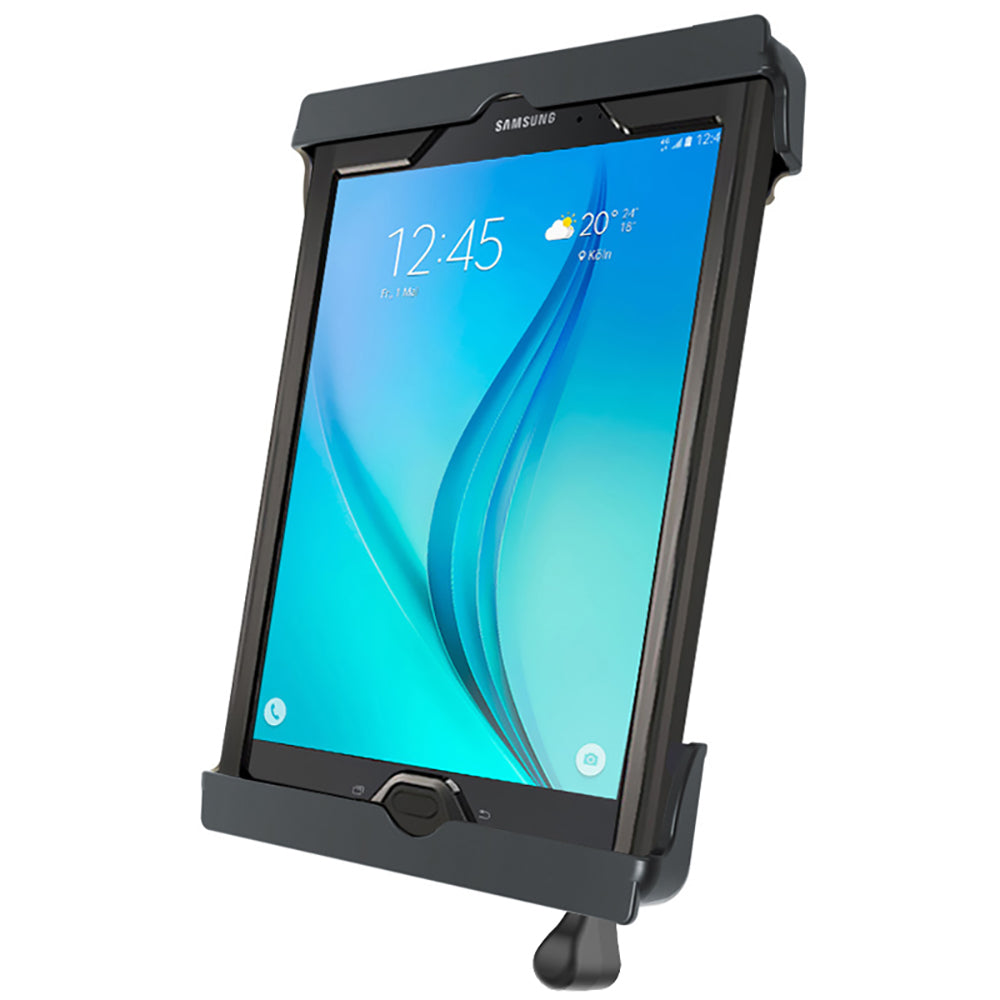

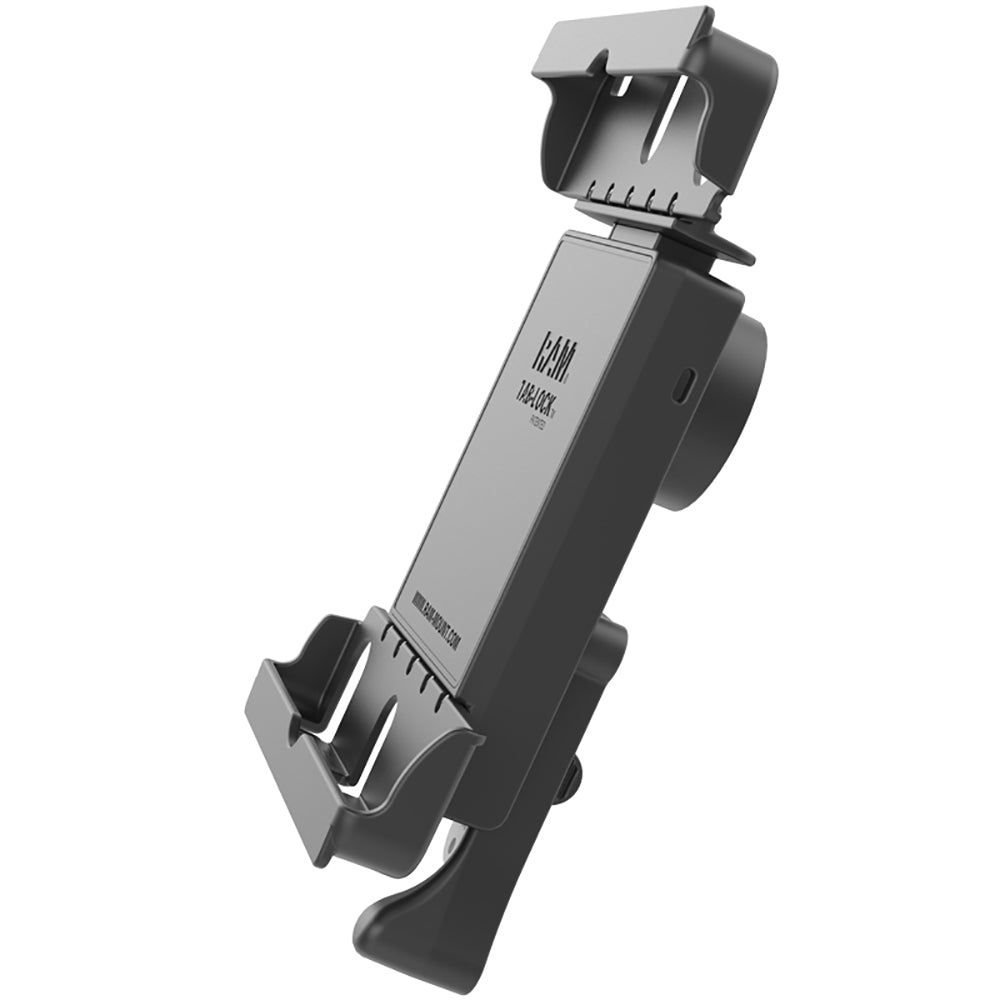

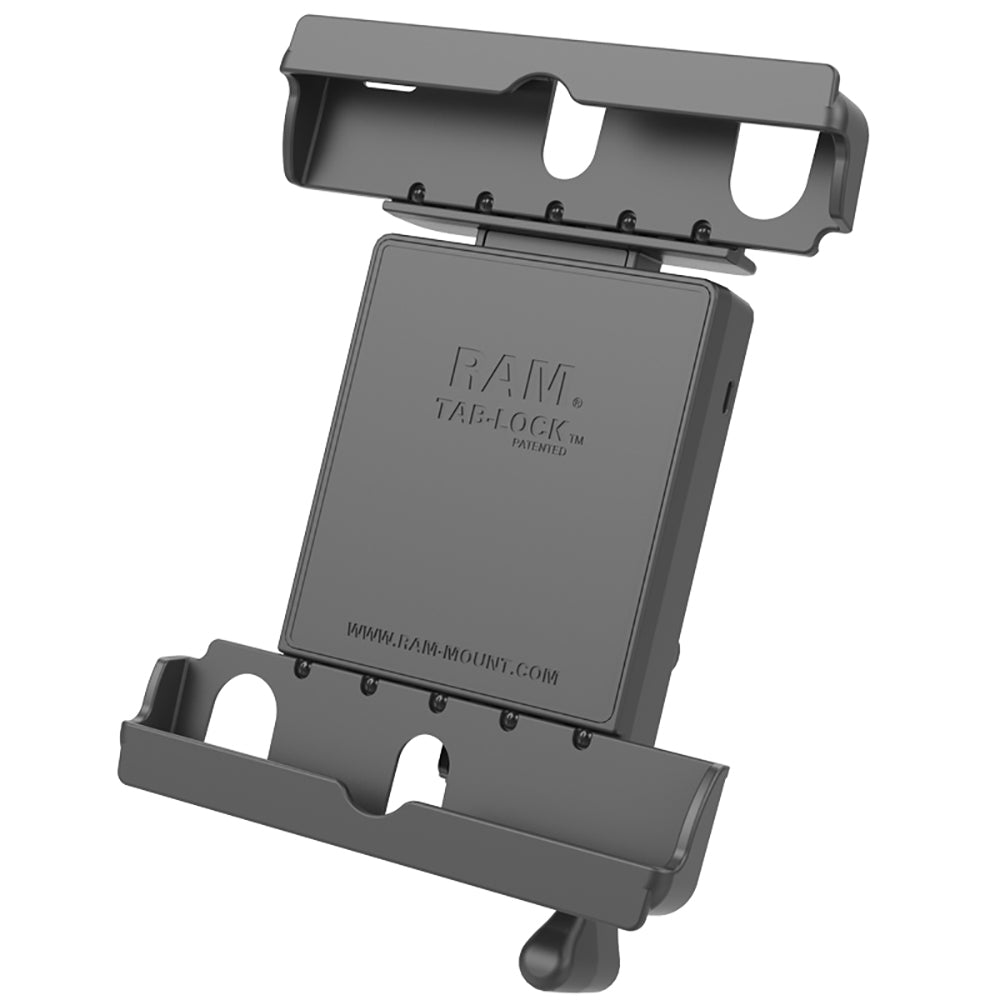

RAM Mount RAM Tab-Lock Holder f/9"-10.5" Tablets w/Heavy Duty Cases

RAM® Tab-Lock™ Holder for 9"-10.5" Tablets with Heavy Duty Cases

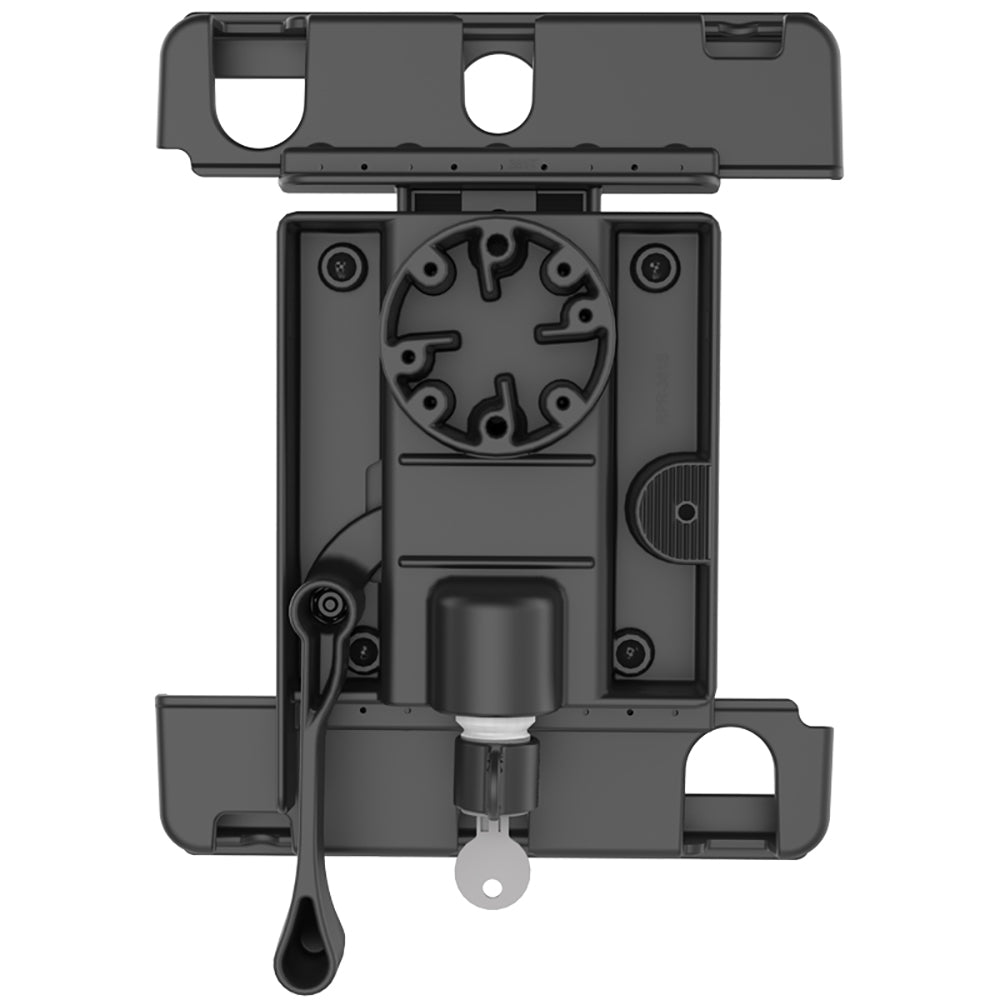

The RAM-HOL-TABL20U consists of a spring loaded back plate, custom support cups and locking mechanism offers theft deterrence and unwanted tampering in public settings. This spring loaded design makes it easy to load and unload your iPad Air, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your iPad, allowing access to audio jacks, usb, power, and other ports, your iPad can be used just as it was intended. Quickly lock the cradle, keeping your iPad Air secure and safe from theft. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.

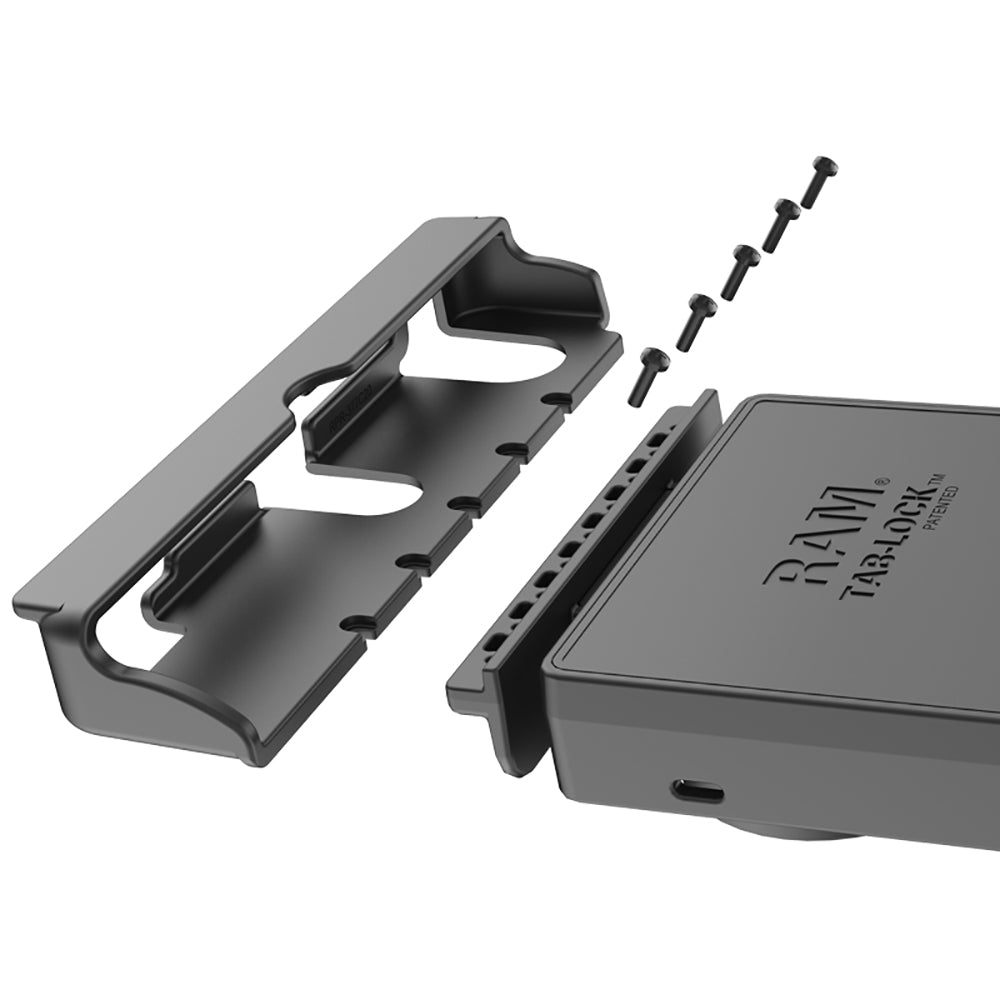

The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet.

The Tab-Lock™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Note: Product consists of holder only. Case not included.

Features:

• Spring-loaded, key locking holder secures most 9" tablets with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
• Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of high-strength composites for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

Hardware Included:

• Assembly Hardware
• (2) #8 x 5/8" Sheet Metal Screws
• (2) M4 x 32mm Machine Screws
• (2) M4 Nylock Nuts
• (2) Keys

Holder Dimensions:

• Height Range: 9.25" - 12.125"
• Width Range: 6.55" - 7.43"
• Depth Range: .3" - .875"

Specifications:

• Hole Pattern: 4-Hole AMPS 1.181" x 1.496"
• Materials: High strength composite
