Description

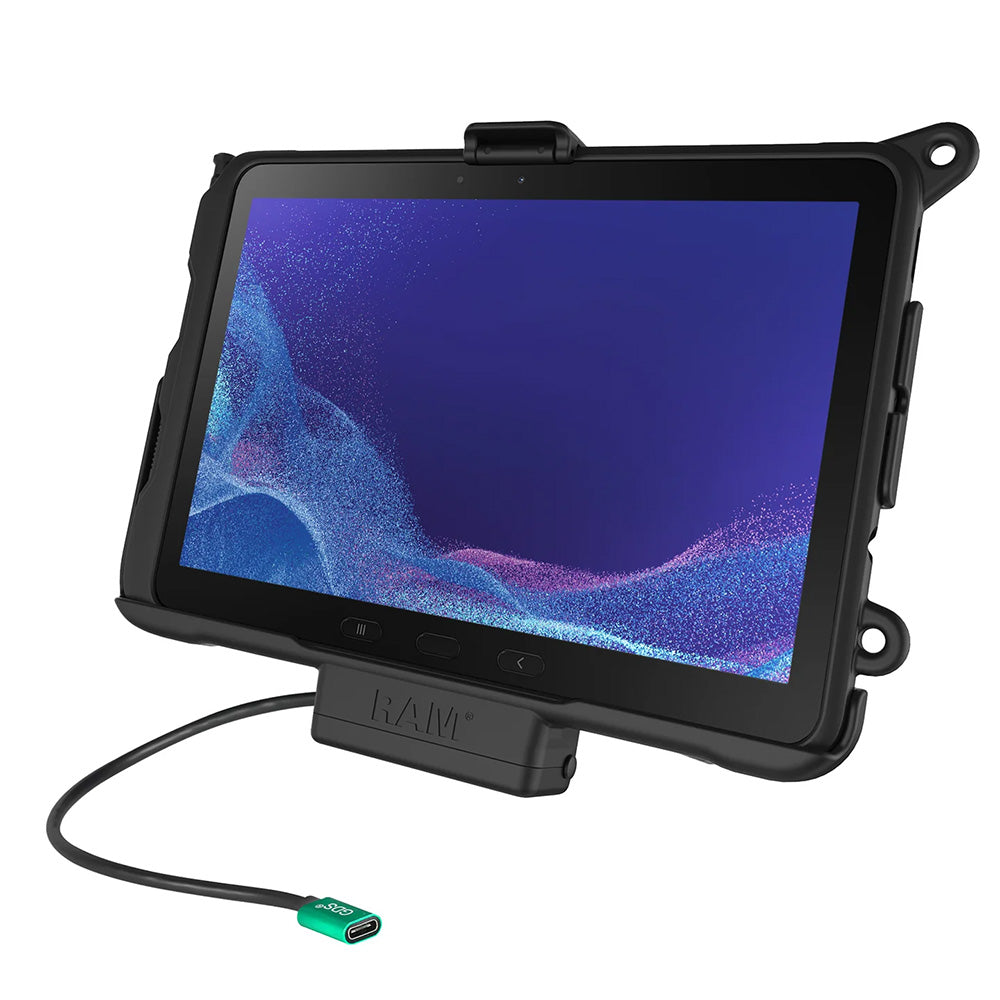

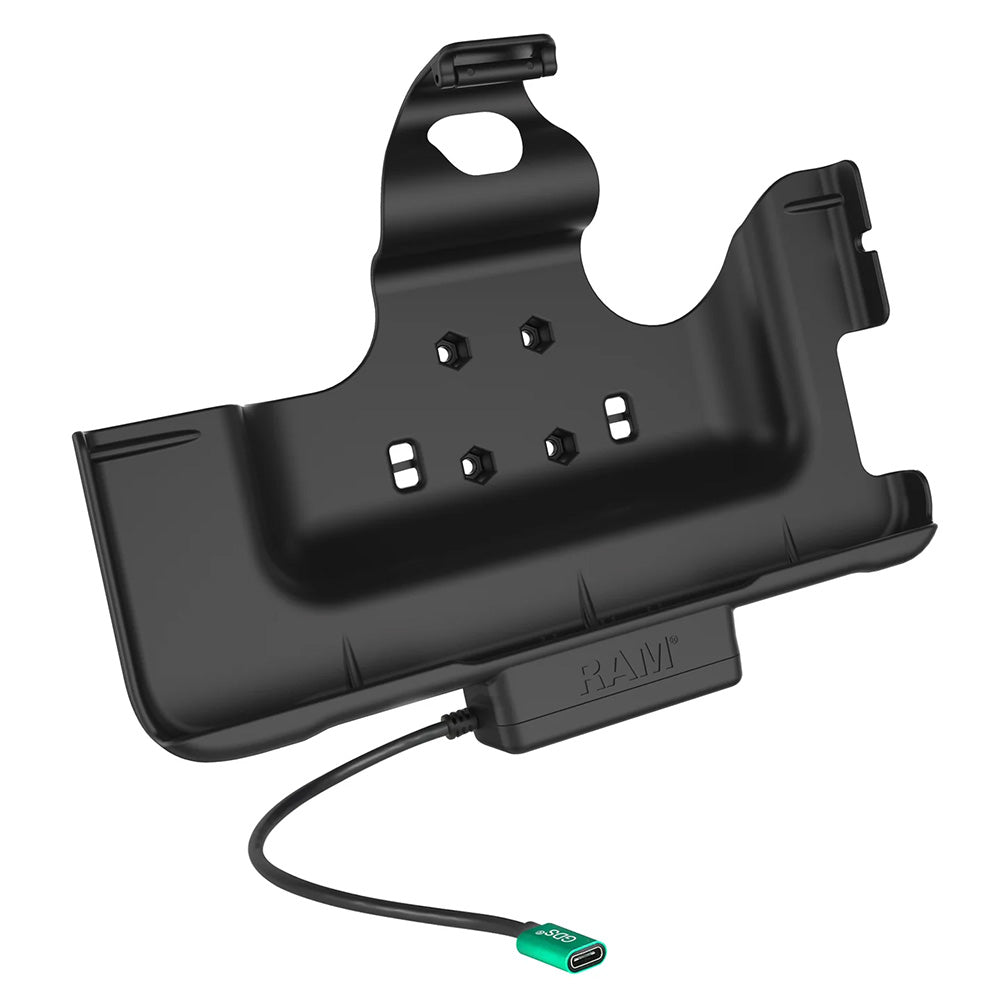

RAM® USB-C Powered Dock for Samsung Tab Active4 Pro & Tab Active Pro
The RAM® USB-C Powered Dock for Samsung Tab Active4 Pro & Tab Active Pro (RAM-HOL-SAM52CPU) features integrated pogo pins that power the device via the USB Type-C connector. These pogo pins are compatible with both the RAM® Skin™ for the Galaxy Tab Active4 Pro and Tab Active Pro and the factory Samsung skin that’s included with the device. In addition, this cradle works perfectly with the RAM® Skin™ while utilizing the GDS® Hand-Stand™ or GDS® shoulder strap. While keeping the Galaxy Tab Active4 Pro and Tab Active Pro secure, the RAM® EZ-Roll’r™ powered cradle also leaves the device’s speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM® round ball bases. Includes a USB Type-C female pigtail for power, as well as one cable clamp and zip ties for cable retention.
Features:
The powered dock provides charging capabilities for Samsung Galaxy Tab Active4 Pro and Tab Active Pro through an integrated pogo pin connector; for light-duty use and landscape mode only
Access to speakers, mics, and headphone jack remains while the device is docked
Easily insert and remove the Samsung Galaxy Tab Active4 Pro and Tab Active Pro with one hand
Compatible with the Samsung OEM skin as well as the RAM® Skin™
Backed by a 3-year warranty
Specifications:
Hardware Included: (4) #8-32 x 5/8" Machine Screws(4) #8-32 Nylock Nuts(1) Cable Clamp(2) Large Cable Ties(5) Small Cable Ties
Hole Pattern: 4-Hole AMPS: 1.181" x 1.496"
Materials: High-strength composite
Input Voltage: 5.3-5.4VDC
Output Voltage: 5VDC
Power Output: 500mA
Input Connector: USB Type-C Female
Input Cable Length: 215mm
Packaging Type: Poly Bag
Warranty: 3-year warranty
Weight: 0.71 lbs
Additional Information:
This holder is intended only for light-duty applications in landscape mode. For heavy duty applications and/or operating in portrait mode, see locking options.
This product will not support the "No Battery Mode" function of the Tab Active4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options.
