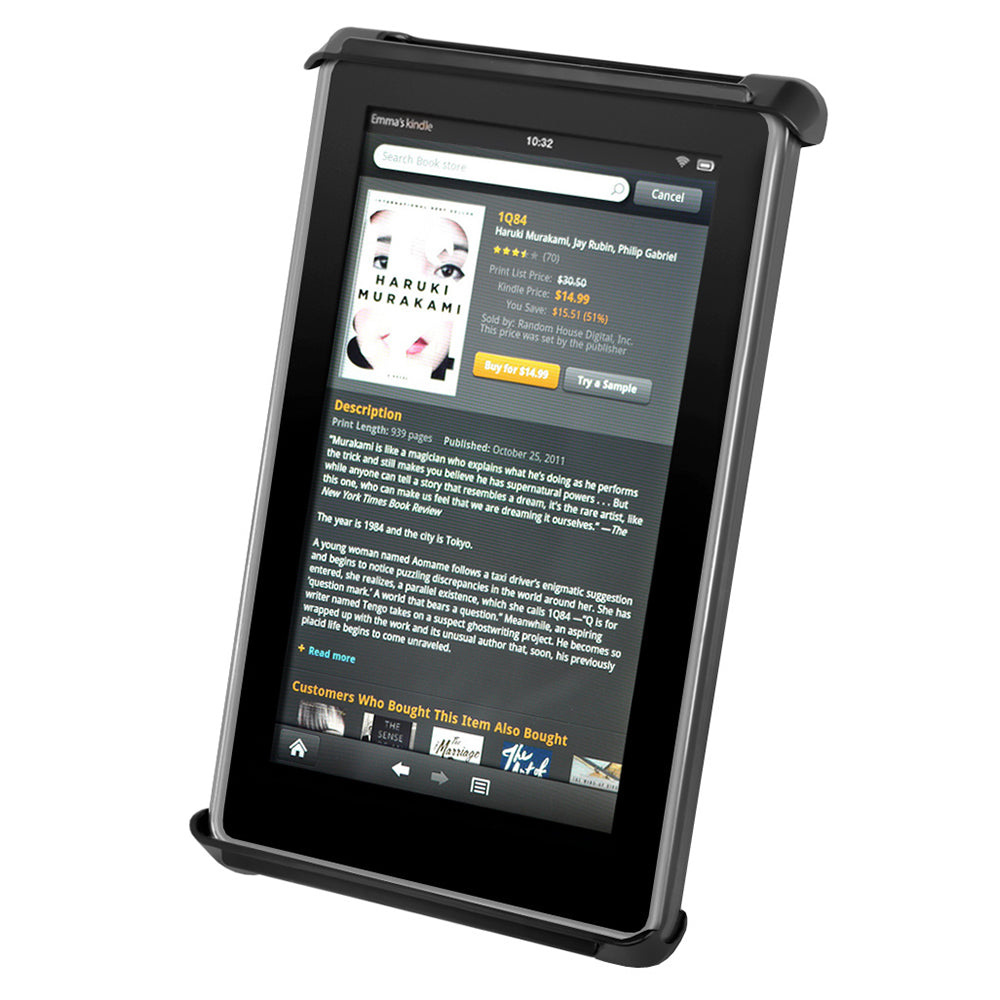

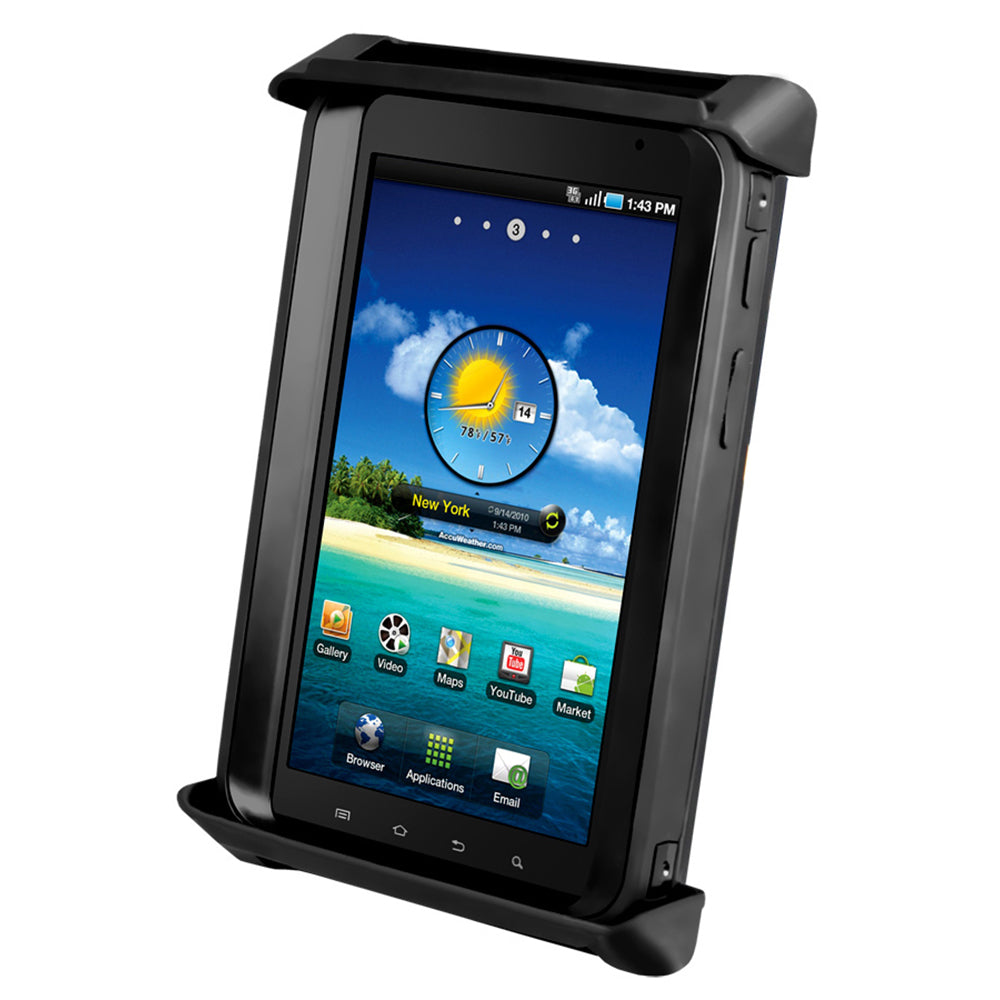

RAM Mount Tab-Tite Small Universal f/7" Screens

RAM Universal SMALL Tab-Tite Holder for 7" Screen Tablets including the Samsung Galaxy, Dell Streak 7 & BlackBerry PlayBook

Now that you've got the right Tab for the job, you are going to need the right mounting system. Get the most out of your tablet with the Universal RAM Tab-Tite cradle. With 3 sets of interchangeable cup ends, ranging from different sizes and features, you can fit the holder to your tablet for a near custom fit. This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, USB, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, this new RAM product is just what you need to get the most out of your mobile device.

The Tab-Tite is compatible with the following tablets WITH OR WITHOUT SKINS, SLEEVES OR CASES:

• Archos 7

• Asus EEE Pad Memo

• Barnes & Noble NOOKcolor

• BlackBerry PlayBook

• Dell Streak 7

• HTC Flyer

• Samsung Galaxy

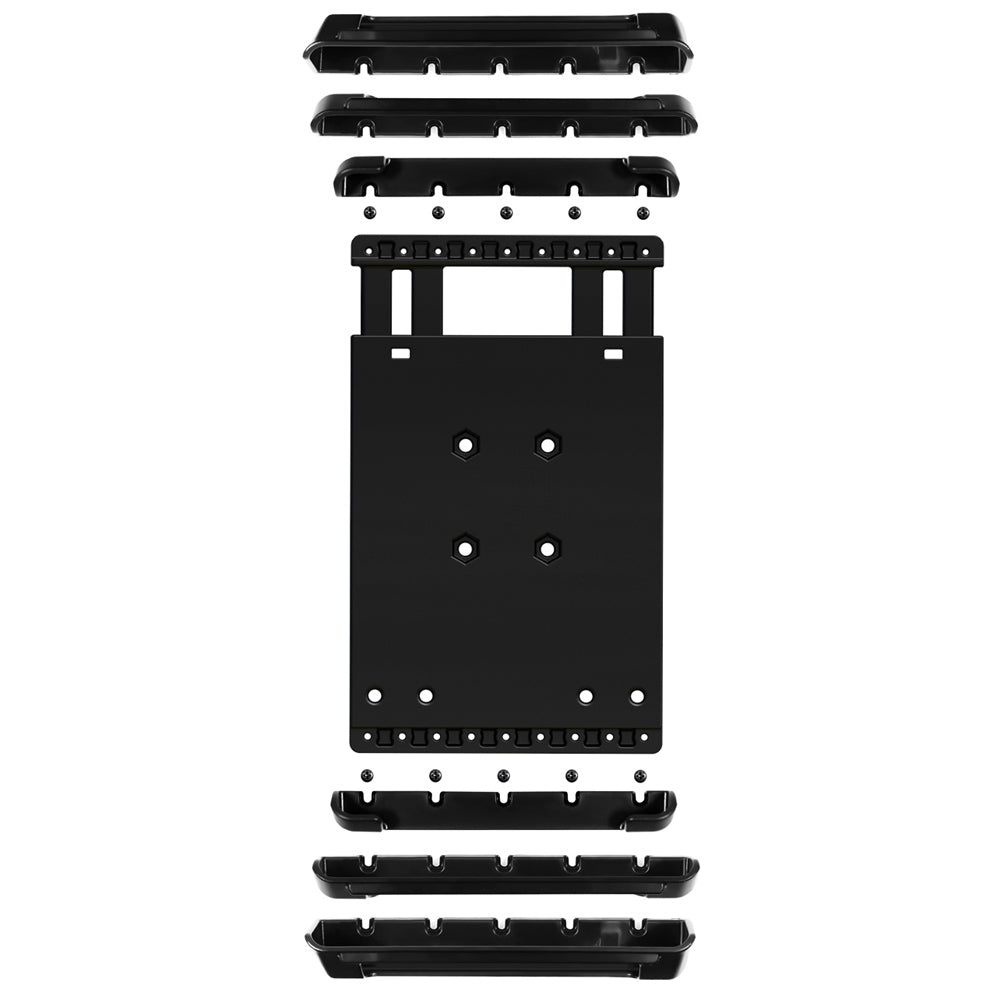

Included With Purchase:

• (1) Spring loaded back plate

• (2) Support cups for thin tablets with no skins

• (2) Support cups for thin tablets with thin or no skins

• (2) Support cups for thick tablets with cases

• Mounting hardware

The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet with a case/sleeve/skin when determining the overall size.

Cradle Dimensions:

• Height: 7.3" minimum to 9.62" maximum

• Width: Maximum width to 5.31"

• Depth: 1.06" maximum

Cradle Dimensions:

• Height: 6.80" minimum to 9" maximum

• Width: Maximum width to 5.31"

• Depth: 0.125" minimum to 0.56" maximum

  Cradle Dimensions:

  • Height: 5" minimum to 9.1" maximum

  • Width: Maximum width to 4.70"

  • Depth: 0.125" minimum to 0.44" maximum

  Features:

  • 1. Support cups contain open slots to accommodate for tablets of various sizes

  • 2. Back plate can support various size support cups

  • 3. Spring loaded tension provides secure support for your tablet

  • 4. Spring loaded cradle allows for quick release of your tablet

  • 5. Full access to all ports

  Material:
  High Strength Composite

  Note:
  The "U" in the part number reflects product packaged in poly bag. Diamond base adapter not included with purchase.

  Quick Guide (pdf)
