RAM Mount X-Grip Phone Mount f/Wheelchair Seat Tracks

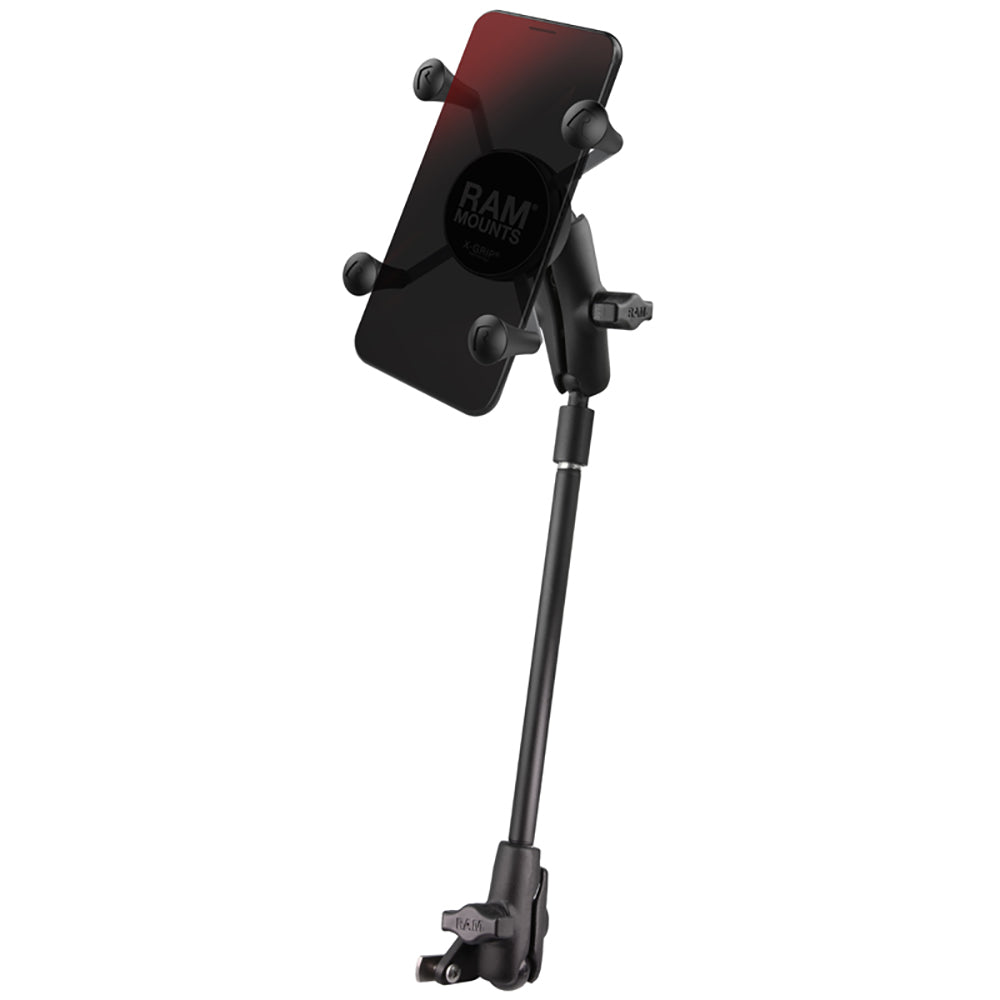

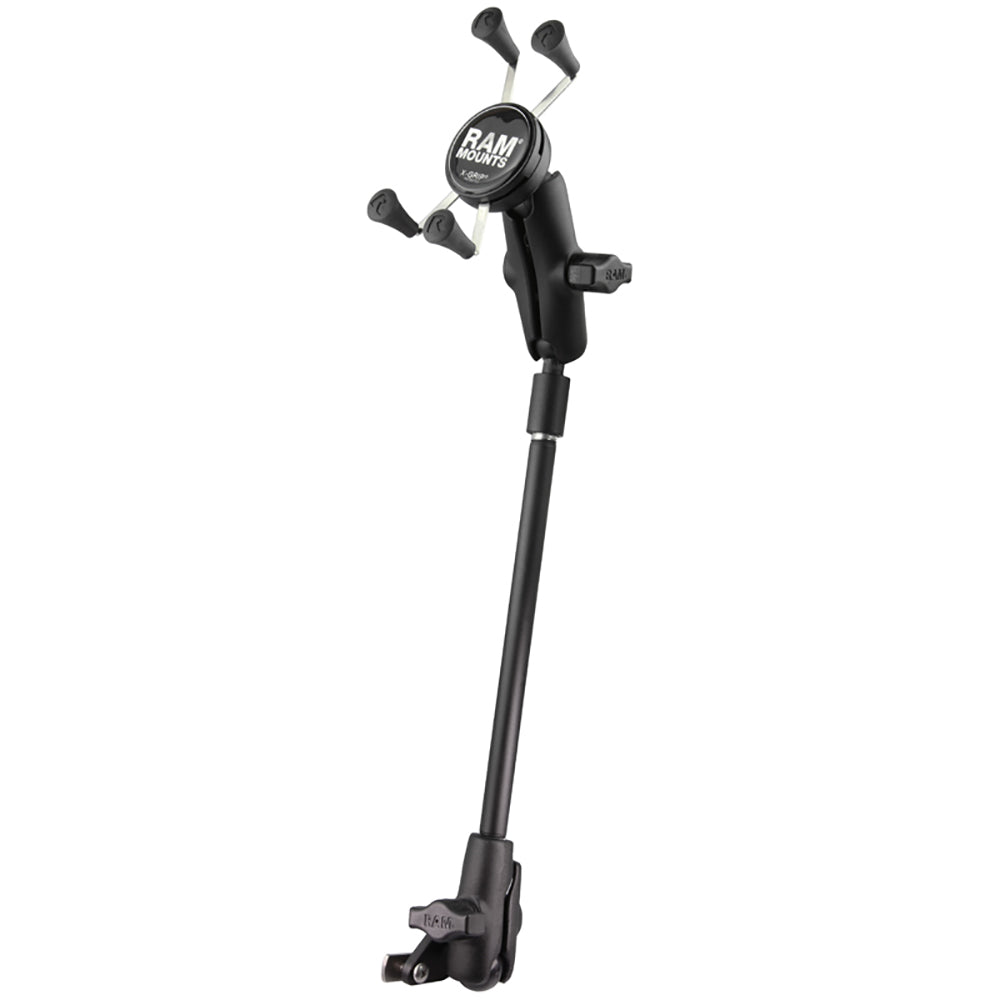

RAM® X-Grip® Phone Mount for Wheelchair Seat Tracks

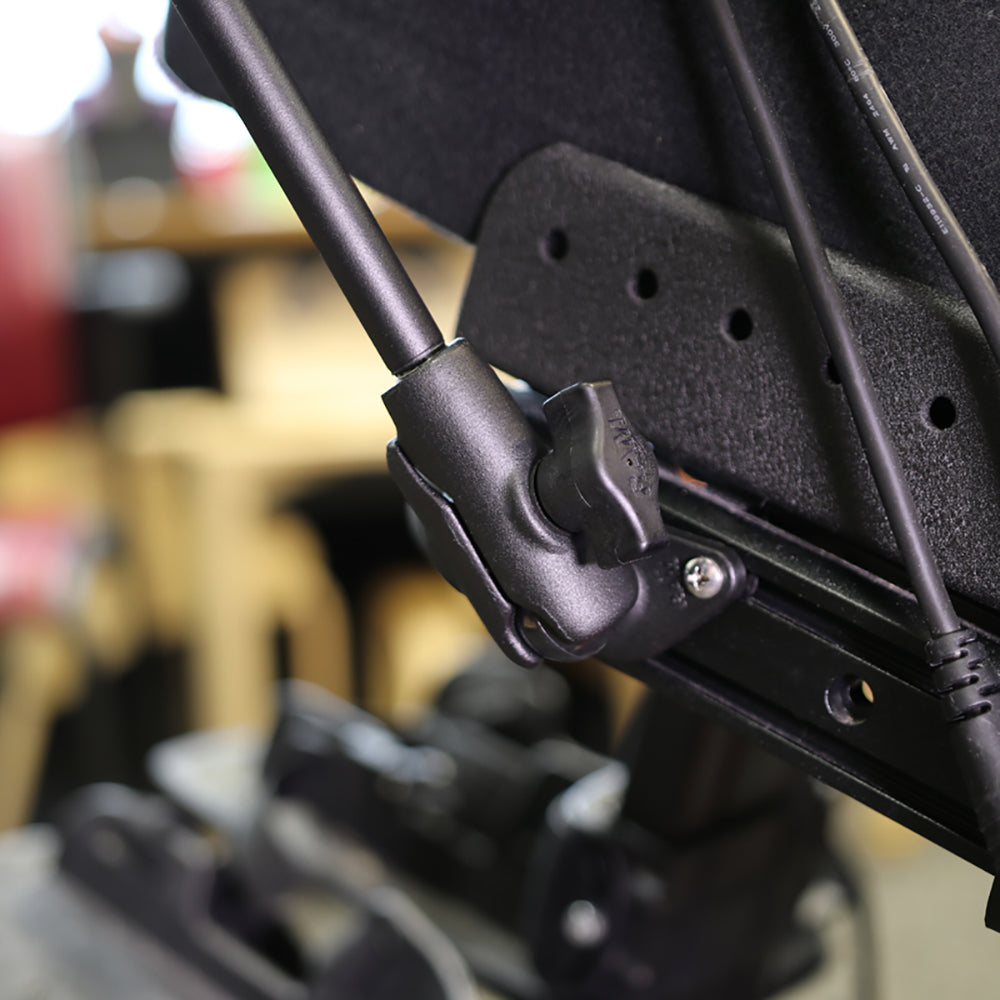

This kit includes a B size RAM® diamond ball base with a universal hardware pack that accommodates the seat track on most major wheelchair brands, including Invacare, Permobil, and Quickie. With the included short single socket arm, 9" pipe extension, and medium double socket arm, connect and adjust the RAM® X-Grip® universal phone holder to your ideal position. The popular, spring-loaded RAM® X-Grip® provides a perfect fit for a wide variety of phones.

Specifications:

Cradle Dimensions:

• Minimum Width = 1.875" (Minimum Height = 4.25")
• Maximum Width = 3.25" (Minimum Height = 2.25")
• Depth = 0.875"

Included Mounting Hardware:

• (QTY. 2) #10-32 x 1/2" Machine Screw
• (QTY. 2) #10-32 T-Nut (3/8" x 5/8")
• (QTY. 2) #10-32 T-Nut (1/2" x 1")
• (QTY. 2) M4 x 12mm Machine Screw
• (QTY. 2) M4 x 20mm Machine Screw
• (QTY. 2) M4 Stainless Steel Washer
• (QTY. 2) M4 Nylock Nut
• Material: Powder Coated Marine Grade Aluminum
• Ball Size: B Size 1" Rubber Ball
