Description
X-Grip® Phone Mount with Drill-Down Base & Backer Plate

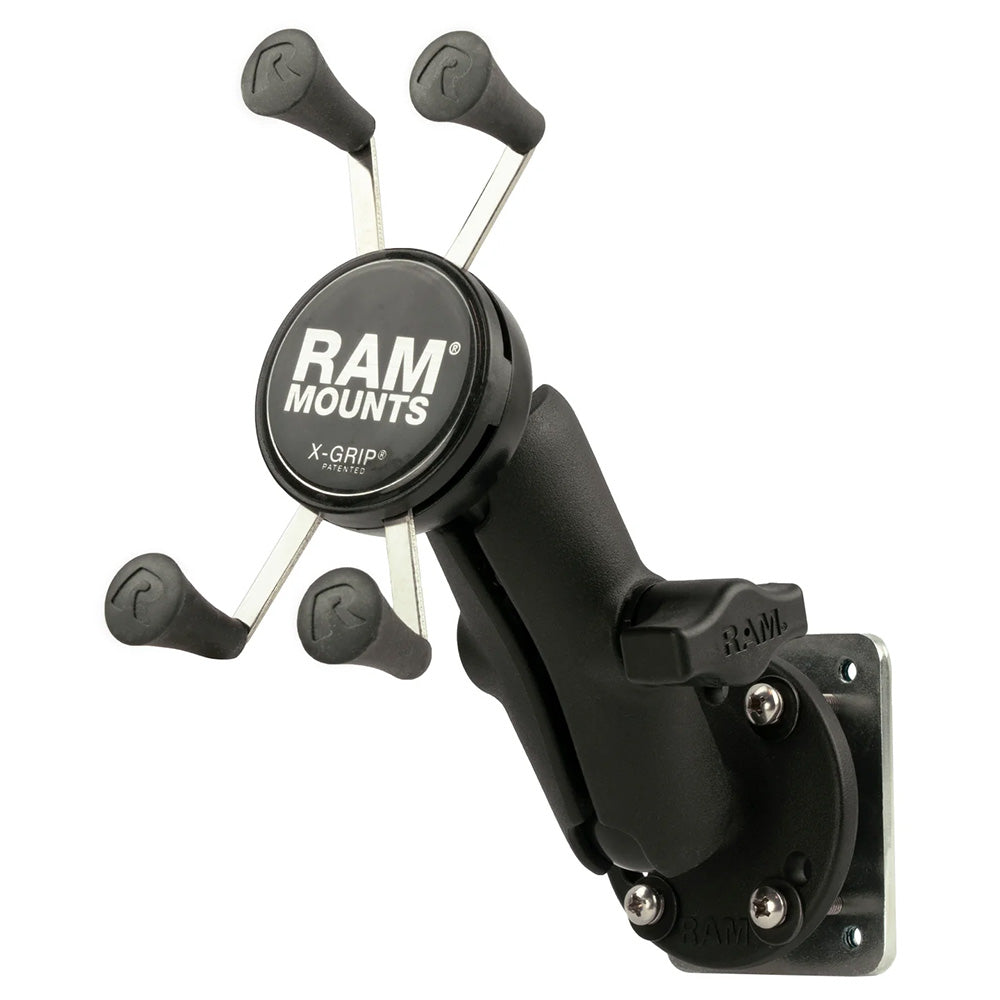

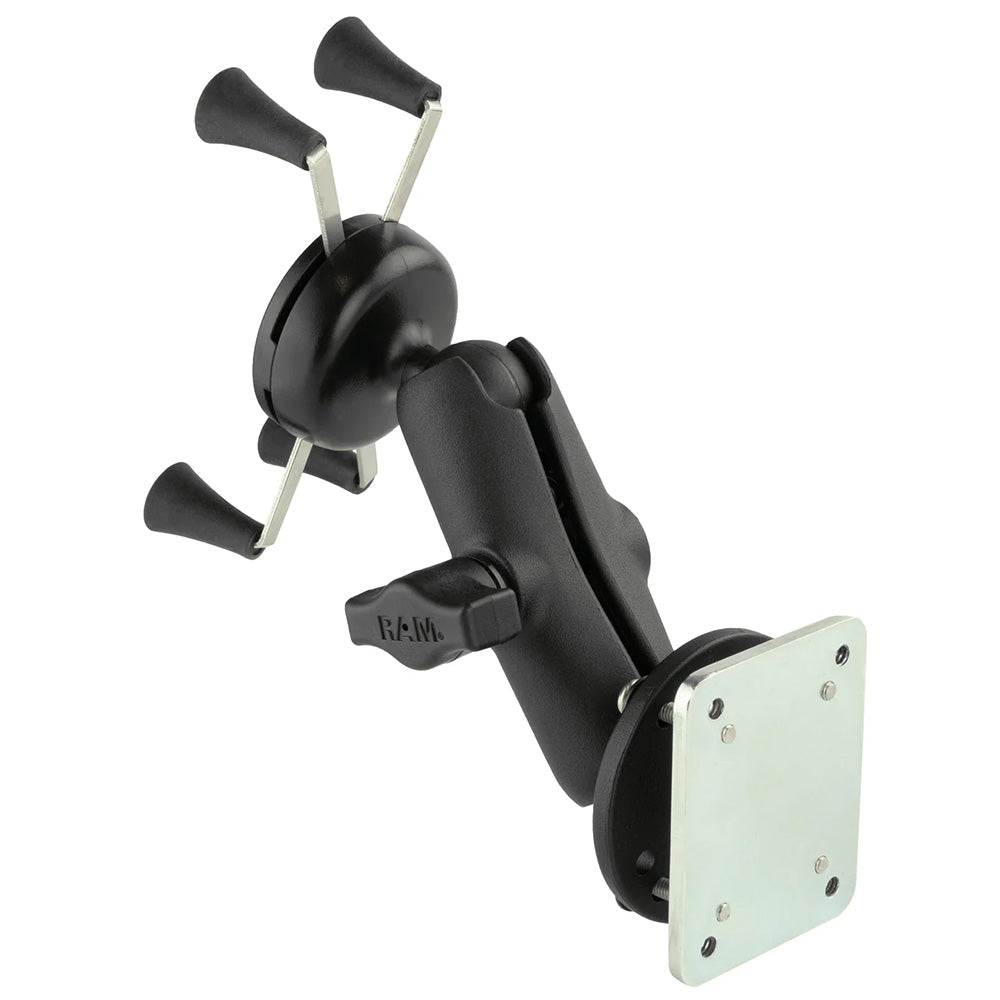

This phone mount consists of a 2.10" x 2.60" steel backer plate, a 2.5" diameter round base, a double socket arm, and a universal spring-loaded X-Grip® cradle for cell phones. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; with a twist of the arm knob, you can move the mount to your optimum viewing position. The included X-Grip® cradle has a clean and clever four-leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring-loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit for your cell phone.
The perfect complement to the modern, sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case, sleeve, or skin when determining the overall size.
Specifications:
- Hardware Included: (1) Optional Tether, (1) Glue Tube for Rubber Caps, (1) 2.10" x 2.60" Steel Backing Plate, (4) #8-32 x 1" Screws, (4) #8 Split Lock Washers, and (4) #8 Flat Washers
- Holder Dimensions (inch): Width Range: 1.875" - 3.25", Depth Range: .875" max
- Socket to Socket Length (inch): 3”
- Hole Pattern (inch): 4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter
- Ball Size (inch): B size (1”)
- Weight Capacity: The standard use is 2 lbs. and the heavy-duty use is 1 lb.
- Materials: Marine-grade aluminum, high-strength composite, and stainless steel
- Weight: 1.2 lb.
Compatible Devices:
- Apple: iPhone 6s, iPhone 7, iPhone 8, iPhone SE, iPhone X, iPhone Xs, iPhone Xr, iPhone 11, iPhone 11 Pro, iPhone 12, iPhone 12 mini, iPhone 12 Pro, iPhone 13, iPhone 13 mini, iPhone 13 Pro, iPhone 14, and iPhone 14 Pro
- Blackberry: DTEK 50, DTEK 60, KEYone
- Garmin: Approach G8, Edge 1030, and Edge Explore 1000
- Google: Pixel, Pixel XL, Pixel 2, Pixel 3, Pixel 3a, Pixel 4, Pixel 4 XL, Pixel 4a, Pixel 5, Pixel 6, Pixel 6 Pro, and Pixel 7
- HTC: U11 and U11 life
- Huawei: Mate 20 Pro and P30 Pro
- LG: Aristo, Aristo 2, Exalt LTE, G5, G5 Silver, G6, G6+, G7 ThinQ, G8 ThinQ, Grace LTE, K20, K20 Plus, K20 V, K3, K3 2017, K8 2017, Phoenix 3, Q6, Rebel 2 LTE, Rebel 3 LTE, Risio 2, Tribute Dynasty, Tribute HD, V30, V35 ThinQ, V40 ThinQ, Wine LTE, and Zone 4
- Motorola: moto e4, moto g5s plus, moto g6, moto g7 power, moto X2, moto X4, and razr
- Nokia: 1, 2, 3, 5, 6, 8, 9 PureView, 216, 230, 150 Dual SIM, 3310 Dual SIM, 7 plus, 8 Sirocco, and 8110 4G
- OnePlus: 6T, 7, 7T, 7T Pro, and 7 Pro
- Samsung: Galaxy A3, Galaxy A3 (2016), Galaxy A3 (2017), Galaxy A5, Galaxy A5 (2016), Galaxy A5 (2017), Galaxy A6, Galaxy A6+, Galaxy A7 (2016), Galaxy A8+, Galaxy A8 (2018), Galaxy A8+ (2018), Galaxy A10, Galaxy A10e, Galaxy A10s, Galaxy A11, Galaxy A20, Galaxy A20e, Galaxy A30, Galaxy A40, Galaxy A50, Galaxy A50s, Galaxy AMP 2, Galaxy AMP Prime, Galaxy AMP Prime 2, Galaxy C5, Galaxy E5, Galaxy Express 3, Galaxy Express Prime 2, Galaxy Grand Max, Galaxy J1, Galaxy J1 (2016), Galaxy J2, Galaxy J2 (2016), Galaxy J2 (2017), Galaxy J3 (2016), Galaxy J3 (2017) International, Galaxy J3 Emerge, Galaxy J3 Prime, Galaxy J3 V, Galaxy J5, Galaxy J5 (2016), Galaxy J5 (2017), Galaxy J7 (2016), Galaxy J7 (2017), Galaxy J7 Perx, Galaxy J7 Prime, Galaxy J7 Prime 2, Galaxy Luna, Galaxy Note 8, Galaxy Note Fan Edition, Galaxy Note 10, Galaxy Note20, Galaxy On NXT, Galaxy On5, Galaxy On7 Prime, Galaxy On8, Galaxy S5, Galaxy S5 Neo, Galaxy S6, Galaxy S6 Active, Galaxy S6 Edge, Galaxy S6 Edge+, Galaxy S7, Galaxy S7 Active, Galaxy S7 Edge, Galaxy S8+, Galaxy S9, Galaxy S9+, Galaxy S10, Galaxy S10+, Galaxy S10e, Galaxy S20, Galaxy S20+, Galaxy S20 FE 5G, Galaxy S20 Ultra 5G, Galaxy S22 5G, Galaxy S22+ 5G, Galaxy S23, Galaxy V Plus, Galaxy XCover 3, Galaxy XCover 4, Galaxy XCover 5, Galaxy Z Fold2, Galaxy Z Fold3, W2017, Z1, Z2, Z3, and Z4
- Sony: Xperia L1, Xperia X, Xperia X Compact, Xperia X Performance, Xperia XA, Xperia XA1, Xperia XA1 Plus, Xperia XA2, Xperia XZ, Xperia XZ1, Xperia XZ1 Compact, Xperia XZ2, Xperia XZ2 Compact, Xperia XZ3, Xperia XZs, Xperia Z3, Xperia Z3+, Xperia Z5, and Xperia Z5 Compact
- Xiaomi: Mi 9, Mi 9 Explorer, Mi Mix 2S, and Mi Mix 3
- ZTE: Axon 9 Pro and Axon 10 Pro
