Description

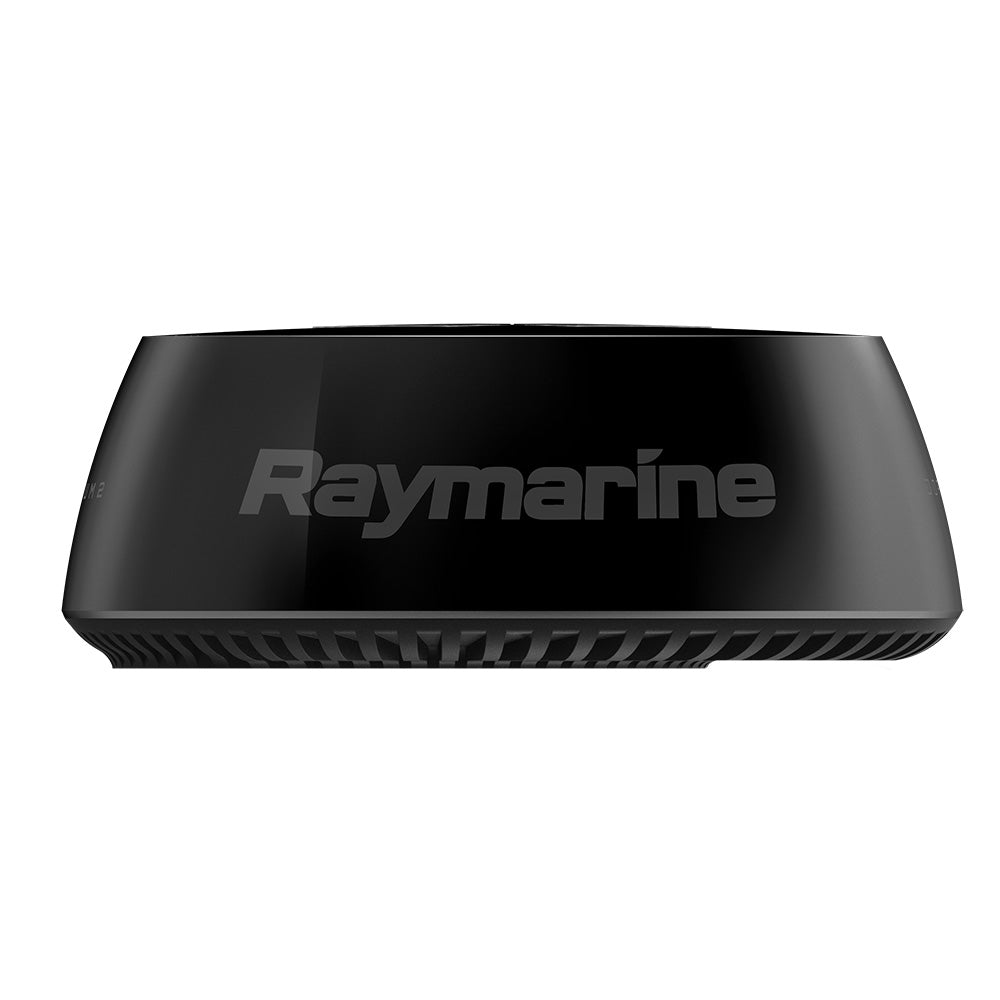

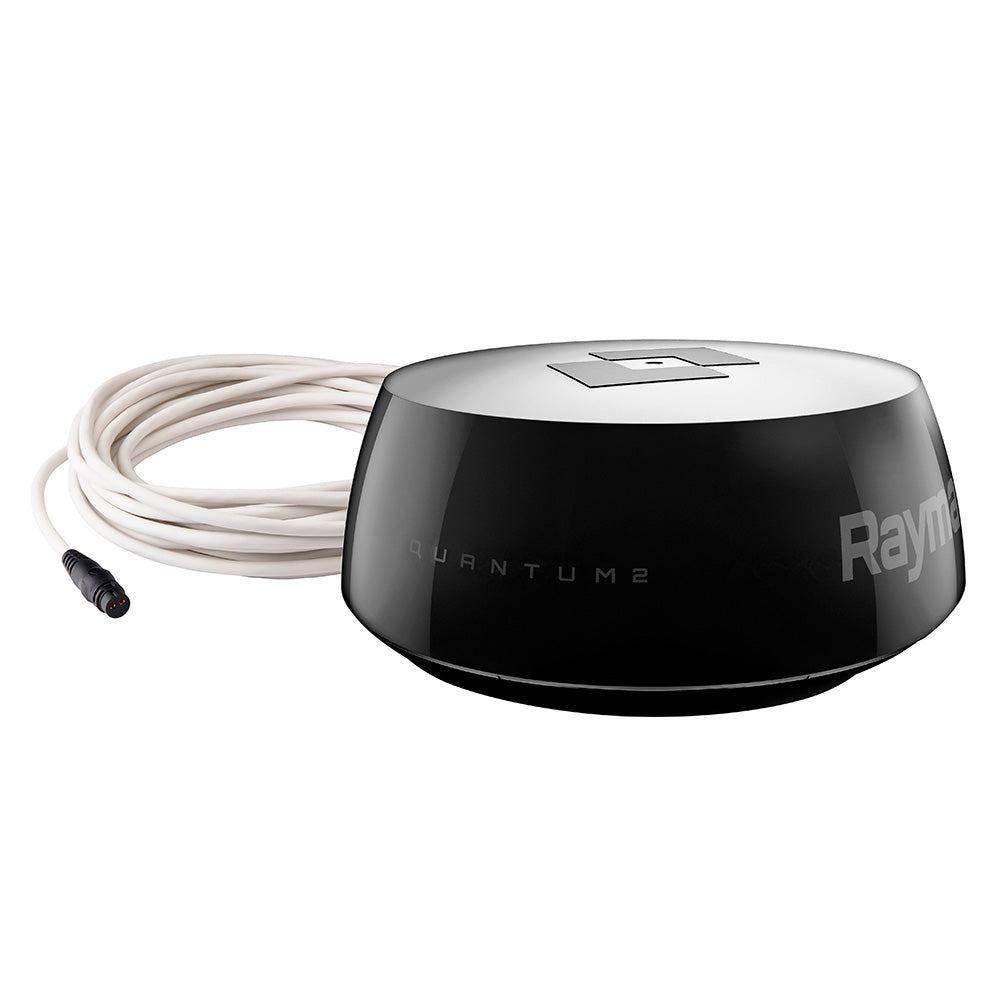

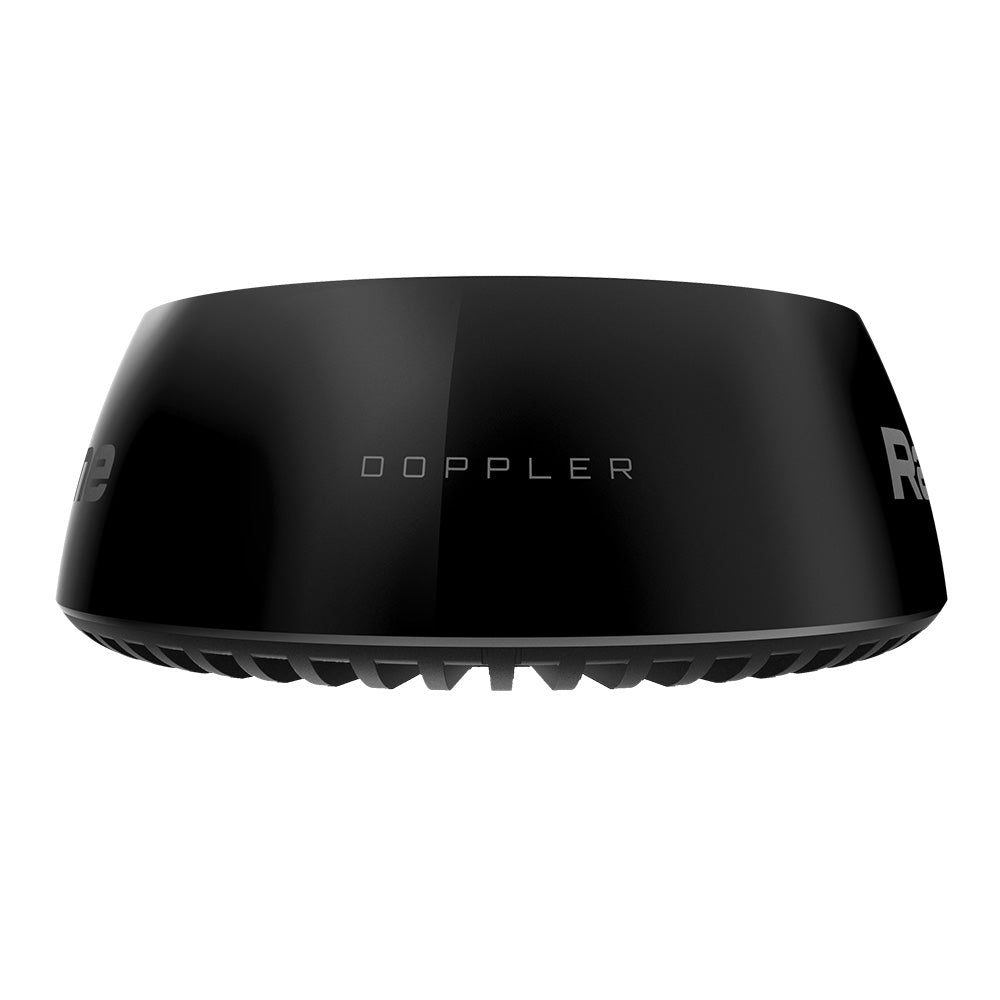

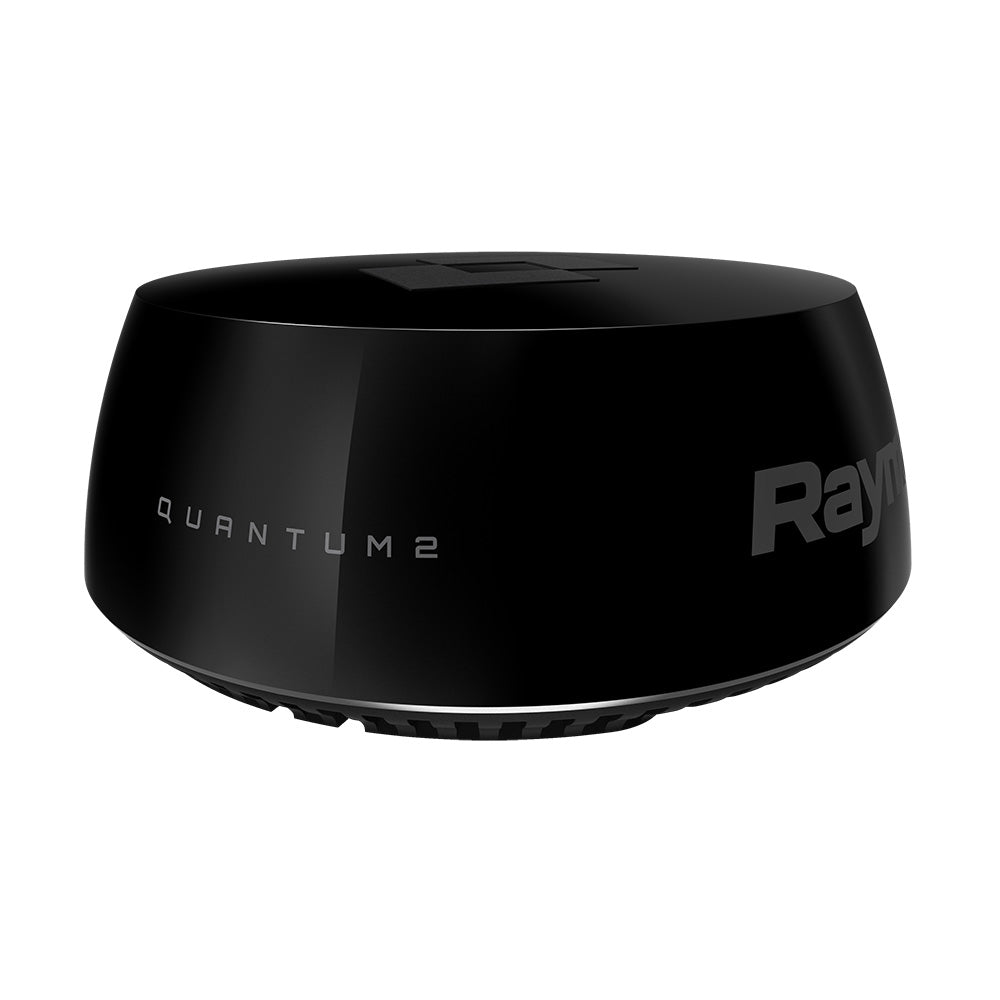

Black Q24D Quantum 2 Doppler Radar with 15M Power & Data Cables
Keep inexperienced boaters and hidden dangers at bay, even in the most congested waterways.
Quantum™ 2 with Doppler collision avoidance technology makes it easy to discern potentially dangerous targets when navigating in high-traffic areas. Using advanced Doppler processing, Quantum 2 instantly highlights moving radar contacts and color codes to indicate whether they are inbound or outbound.
Features:
- Black radome enclosure
- WiFi and Ethernet
- 15M power and data cables are included
- Quantum 2 Doppler Radar, perfect for sailboats, RIBs, and smaller powerboats
- Available as a standalone scanner with power and data cable
- Provides excellent short-range detection and enhanced target detail with an 18’ (6m) minimum range
- Simplified, fast installation, and the ability to utilize existing Raymarine scanner fixing points
- Once installed, Quantum 2 starts right up and immediately provides awareness
Quantum 2 Black: Stay Aware With Style
Offering confident radar navigation and style, Quantum 2 Black adds a level of sophistication to any vessel.
Quantum 2 Black offers the same performance and safety-enhancing Doppler target tracking as the original white Quantum 2 in premium black housing.
Superior Collision Avoidance
Raymarine Quantum 2 Doppler target processing identifies and color codes moving radar contacts for instant recognition and reduced risk of collision.
Quantum 2 MARPA mode provides an effective means of dangerous target tracking and is the same technology trusted by the United States Coast Guard.
What’s In The Box:
- 18 in. black radome
- Power cable 15M (49.2 ft)
- Data cable 15M (49.2 ft)
- Fixing bolts with spring washers and flat washers (M8) x 4
- Documentation
General Specifications:
- Dimensions (Diameter|Height): 541.0 mm|209.5 mm
- Weight: 5.6 kg
- Supply Voltage: Either 12 V dc or 24 V dc nominal
- Minimum: 10.8 V dc | Maximum: 31.2 V dc
- Operating Voltage Range: Minimum: 10.8 V dc | Maximum: 31.2 V dc
- Power Consumption: Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2 W
- Waterproofing: IPX6
- Operating Temperature Range: -10°C to +55°C
- Storage Temperature Range: -25°C to +70°C
- Additional Storage Conditions: Store upright; do not block vents on the underside
- Humidity: Up to 95% at 35°C
- Maximum wind speed: 100 kts
Transmitter Specifications:
- Type: X-band solid-state transmitter with pulse compression technology
- Transmit Frequency: 9354 MHz to 9446 MHz
- Peak Power Output: 20W
- Duplexer: Circulator
- Pulse Widths (3 dB): 40 ns to 14.7 us
- Chirp Lengths: 400 ns to 22 us
- Pulse Repetition Frequency: 920 Hz to 5900 Hz
- Chirp Bandwidth: Up to 32 MHz
- Standby Mode: Scanner rotation - OFF | Scanner transmission - OFF | Wi-Fi link – ON
Antenna Specifications:
- Type: Patch Array
- Beamwidth (nominal): Horizontal: 4.9° | Vertical: 20°
- Polarization: Horizontal
- Rotation Speed: 24 rpm nominal
Receiver Specifications:
- IF Frequency: 26 MHz
- Noise Figure: Less than 4 dB
Doppler Specifications:
- Target Tracking: Tracking of 25 simultaneous MARPA and/or ARPA targets
- Target Filtering: True Motion Mode identifies only those objects that are moving relative to the vessel
Compatibility Specifications:
- Radar Type: Quantum 2 with Doppler
- MFD Compatibility: Axiom and Axiom Pro
- Perfect for: Sailboats, RIBs, and smaller powerboats
- Type: Solid State CHIRP Pulse Compression with Doppler target tracking
- Range Performance: 24NM
- Performance: Lightweight and easy to install. Excellent short and long-range performance. Detect targets as close as 18ft
- Automatic Bird Mode: No
- MARPA Target Tracking: Yes
Radar Specifications:
- Transmitter Type: X-band solid-state transmitter with pulse compression technology
- Target Tracking: Track up to 25 simultaneous Radar targets
- Standby Mode: Rotation: OFF, Transmission: OFF, Wi-Fi: ON
- Antenna Type: Patch Array
- Noise: Less than 4 dB
- Beamwidth (nominal): Horizontal: 4.9°, Vertical: 20°
- Polarization: Horizontal
- Duplexer: Circulator
- Transmit Frequency: 9354 MHz to 9446 MHz
- Pulse Repetition Frequency: 920 Hz to 5900 Hz
- CHIRP Lengths: 400 ns to 22 µs
- Pulse widths (3 dB)
- 40 ns to 14.7µs
- IF Frequency: 26 MHz
- Rotation Speed: 24 RPM
- Peak Power Output: 20 W
Conformance:
- Standards: USA: 47CFR FCC Part 2 & Part 80 Certificate of Approval, Canada: RSS138 Iss. 1 Technical Acceptance Certificate, European Union & EFTA: Radio Equipment Directive 2014/53/EU Certificate of Opinion, Australia / New Zealand: ACMA Declaration of Conformity Compliance level 3
Environmental Specifications:
- Relative Humidity: Up to 95% @ 35°C (95°F)
- Additional Storage Conditions: Store upright; do not block vents on the underside
- Waterproof Rating: IPx6
- Storage Temperature: -25°C to +70°C (-13°F to 158°F)
- Maximum Wind Speed: 100 knots
- Operating Temperature: -10°C to +55°C (14°F to 131°F)
Physical Specifications:
- Dimensions: Height: 209.5 mm (8.25 in), Diameter: 541.0 mm (21.3 in)
- Weight: 5.6 kg (12.35 lbs)
Specifications:
- Array Size (Inches): 18"
- Power - Output: 20w
- Box Dimensions: 12"H x 24"W x 24"L WT: 23.3 lbs
- UPC: 723193852262
