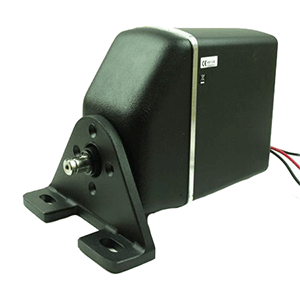

Rotary Drive Type 1 - 12V
The rotary drive is designed for power and sailboat systems that can be driven from the helm position through a chain and sprocket (e.g. cable and rod steering system). The outstanding design of the Raymarine rotary drive unit provides smooth, powerful autopilot controlled steering with quiet operation.
Optional drive sprockets and modification to the steering chain may be required.
Features:
Specifications :
Maximum Boat Displacement: 11,000 kg
Peak Output Torque: 20 nm
Maximum Shaft Speed: 33 rpm
Recommended Hard-Over Time (no load): 10 seconds
Power Consumption: 24-48w
Corepack Used: ACU-200
Specifications:
Type: Pumps/Drives
Box Dimensions: 6"H x 11"W x 14"L WT: 11.3 lbs
UPC: 023193811352
