Rigging screw with eye
Rigging screw with eye
Rigging screw with eyeRigging screw with eye

Rigging screw with eye

Blue WaveSKU: RTE017
Price:
$1,321.28
Stock:
Re-stocking soon

Description

RIGGING SCREW WITH EYE

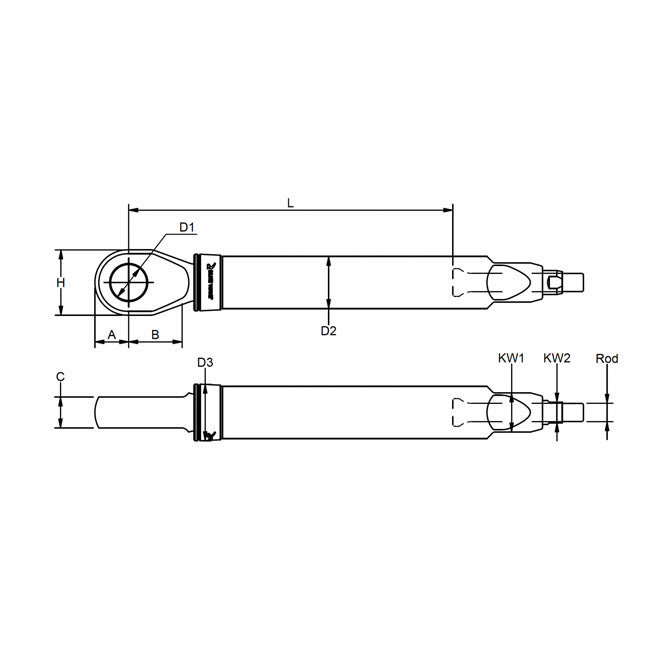

F R W M ROD ART. NO. ROD DASH ROD Ø D1 A B C H L (MIN) L (MAX) D2 D3 KW1 KW2
• RTE017 -17 8,4 16,5 18 24 14 33,5 230 351 27,5 31 21 10,5
• RTE022 -22 9,5 20 20 30 17 38 246 372 31 37 24 12
• RTE030 -30 11,1 23 23 36 19,5 44 263 400 36 39 28 13
• RTE040 -40 12,7 26,5 25 39 22 48 277 424 40 43 30 15
• RTE048 -48 14,3 29,5 28 45 25 54 292 444 44 46 33,5 17
• RTE060 -60 16,8 33 31 49 28,5 60 299 441 48 52 36 19
