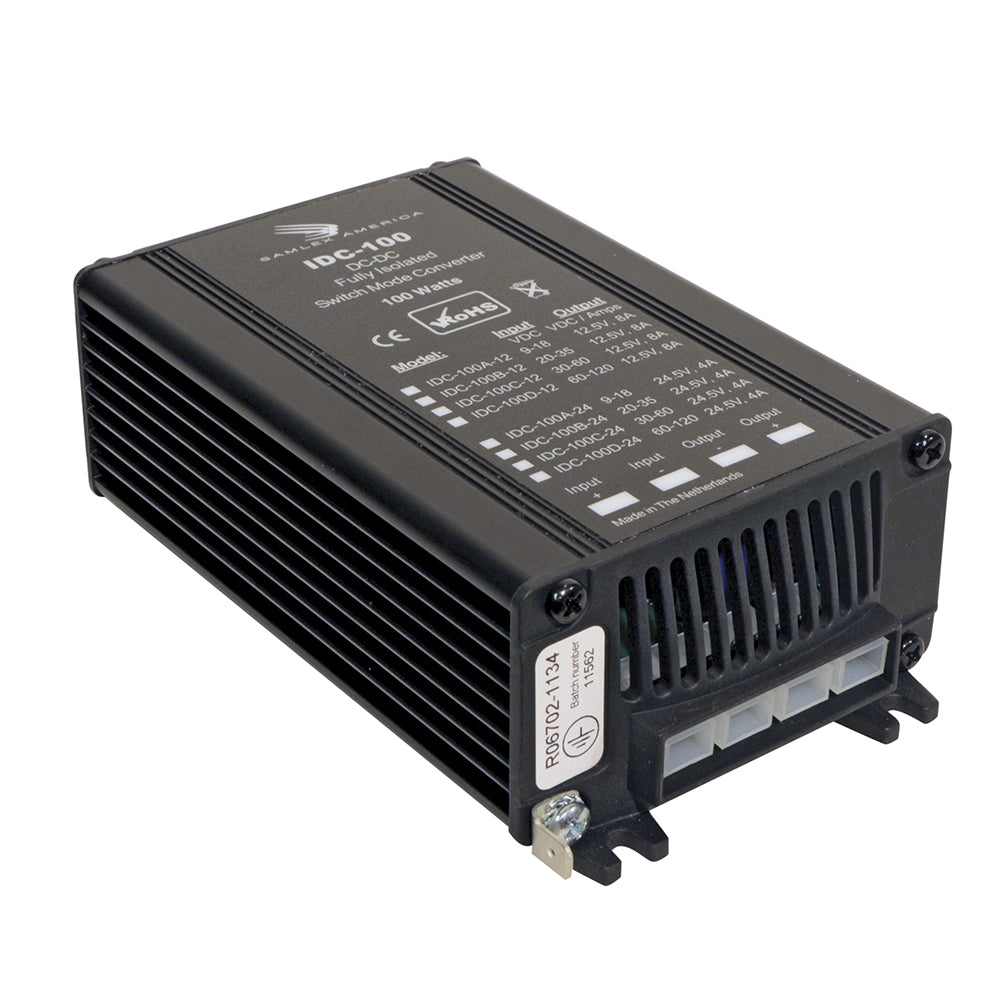

IDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-100C-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 30-60 Volts and rated output current of 4 Amps (at 60 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-100C-24 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI) and EN50082-1 (for EMC).
Features:
Fully Isolated
Short Circuit Protected
Current Limited
CE Approved
2 Year Warranty
Specifications:
Input: 30-60 VDC
Output: 24 VDC
Watts: 100
Amps: 4 Amps
Weight: 1.2 (lbs)
Weight: 0.54 (kg)
Dimensions: 6 x 3.5 x 1.9 (in)
Dimensions: 15.2 x 8.9 x 4.8 (cm)
Safety: CE
Warranty: 2 Year Limited
Applications:
Earth moving equipment
Heavy trucks
Buses
Marine vehicles
CB radios
24 Volt lighting systems
AM/FM sound systems
