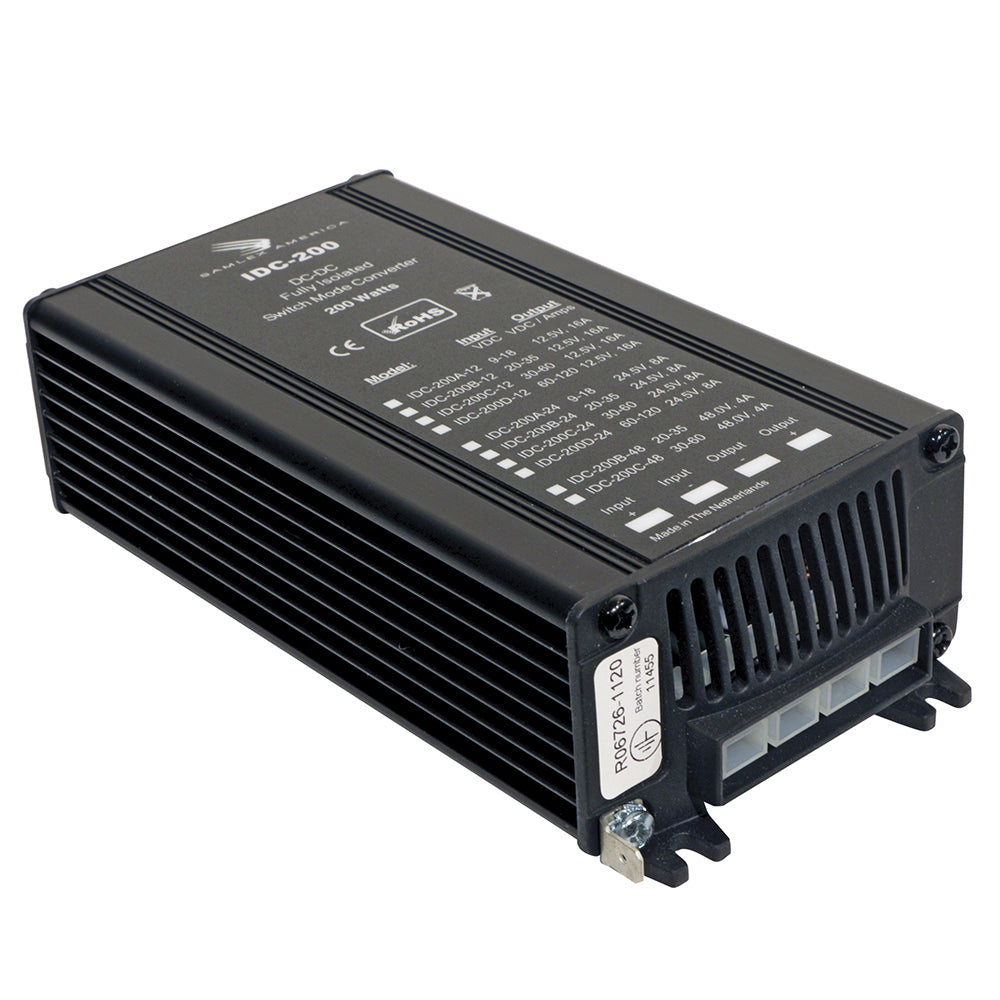

IDC-200 series is a complete line of high efficiency 200 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-200A-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 9-18 Volts and rated output current of 16 Amps (at 18 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-200A-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.
Features:
Fully Isolated
Short Circuit Protected
Current Limited
CE Approved
2 Year Warranty
Specifications:
Input: 9.2-18 VDC
Output: 12 VDC
Watts: 200
Amps: 16 Amps
Weight: 1.5 (lbs)
Weight: 0.68 (kg)
Dimensions: 6.9 x 3.5 x 1.9 (in)
Dimensions: 17.5 x 8.9 x 4.8 (cm)
Safety: CE
Warranty: 2 Year Limited
Applications:
Earth moving equipment
Heavy trucks
Buses
Marine vehicles
CB radios
12 Volt lighting systems
AM/FM sound systems
