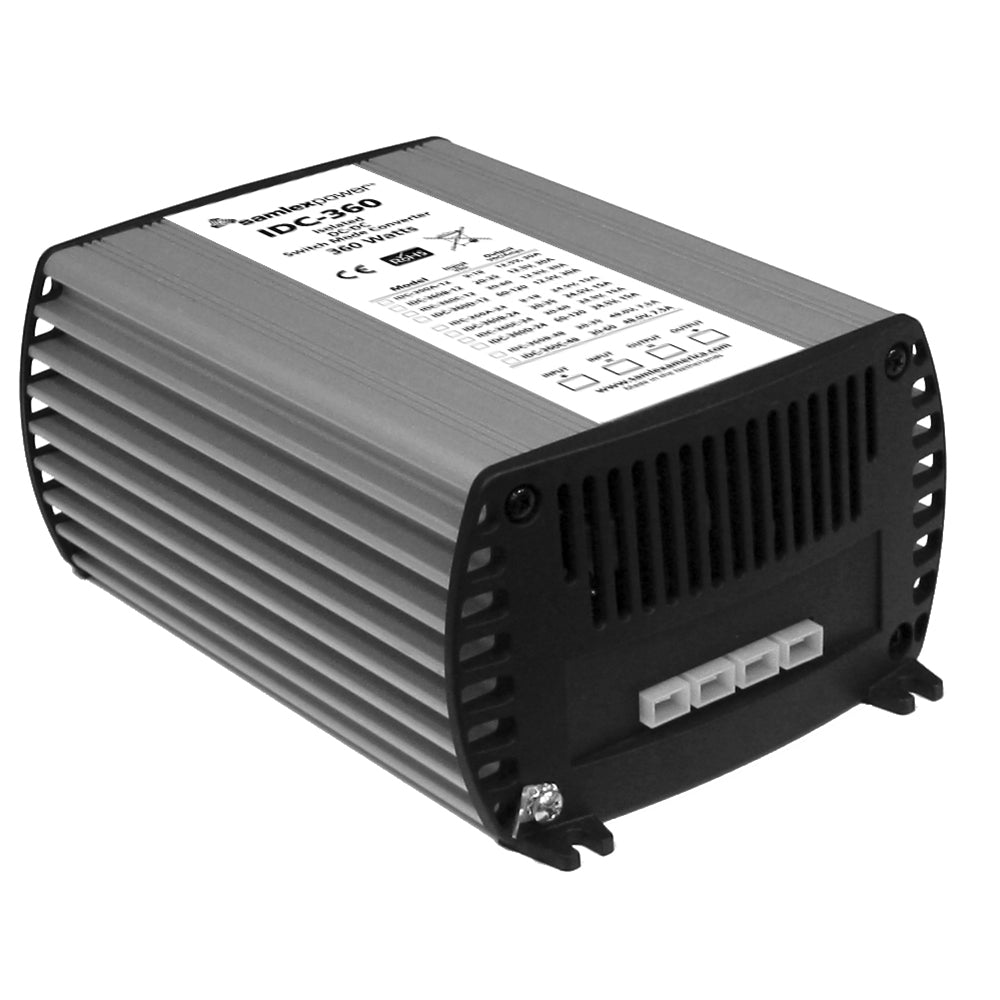

IDC-360 series is a complete line of high efficiency 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-360D-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 60-120 Volts and rated output current of 30 Amps. Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-360D-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI) and EN50082-1 (for EMC).
Features:
Fully Isolated
Short Circuit Protected
Current Limited
CE Approved
2 Year Warranty
Specifications:
Input: 60-120 VDC
Output: 12.5 VDC
Watts: 360
Amps: 30 Amps
Weight: 3.1 (lbs)
Weight: 1.4 (kg)
Dimensions: 5.23 x 7.5 x 3.27 (in)
Dimensions: 132.8 x 190.5 x 83 (mm)
Safety: CE
Warranty: 2 Year Limited
Applications:
Earth moving equipment
Heavy trucks
Buses
Marine vehicles
CB radios
12 Volt lighting systems
AM/FM sound systems
