Description

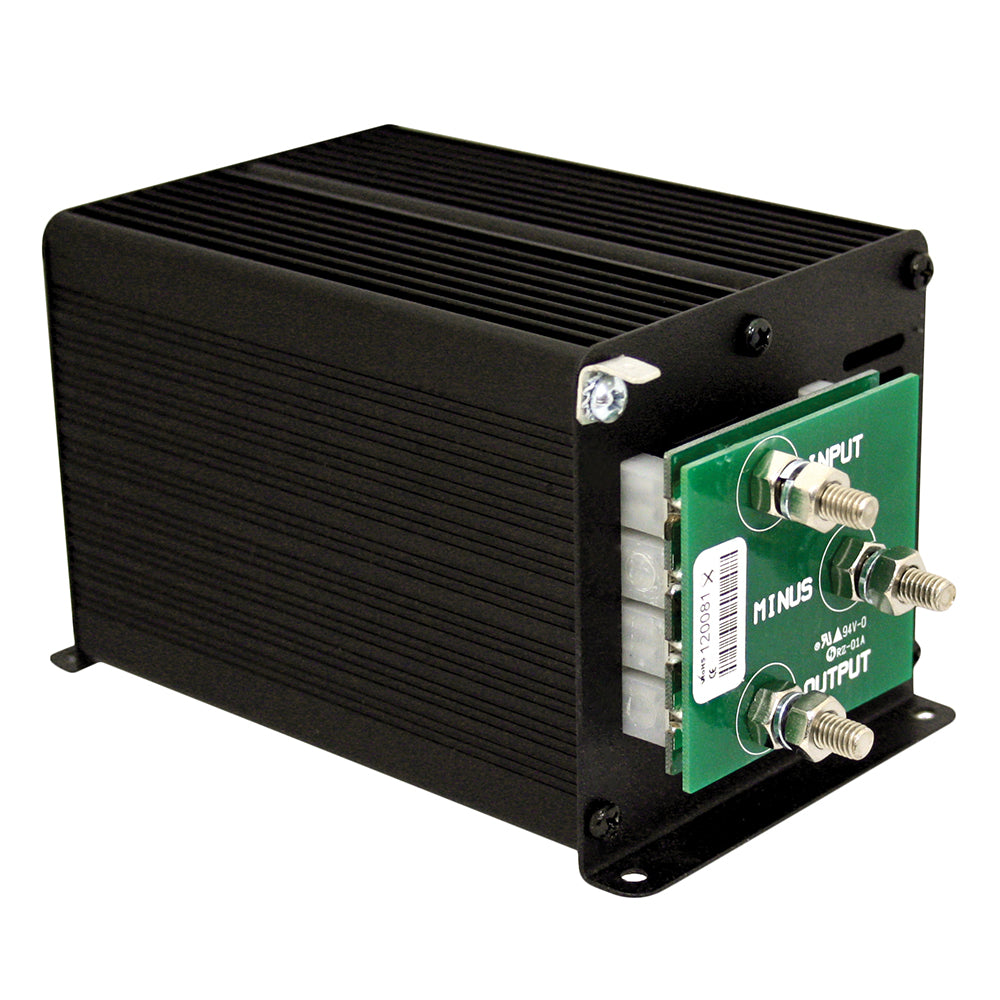

60A Non-Isolated Step-Down 24VDC-12VDC Converter
This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 60 Amps. The SDC-60 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overload, over-heating, reverse polarity and over-voltage protection.
Features:
Advanced switchmode design
Mount in almost any location
Compact and light weight
Reverse polarity protection
High efficiency
Overvoltage protection
Short circuit protection
Specifications:
Input: 20-35 VDC
Output: 13.8 VDC
Amps: 60 Amps
Weight: 2.8 (lbs)
Weight: 1.27 (kg)
Dimensions: 5.5 x 3.5 x 3.75 (in)
Dimensions: 14 x 8.9 x 9.5 (cm)
Warranty: 2 Year Limited
Applications:
Earth moving equipment
Heavy trucks
Buses
Marine vehicles
CB radios
12 Volt lighting systems
AM/FM sound systems
