Description

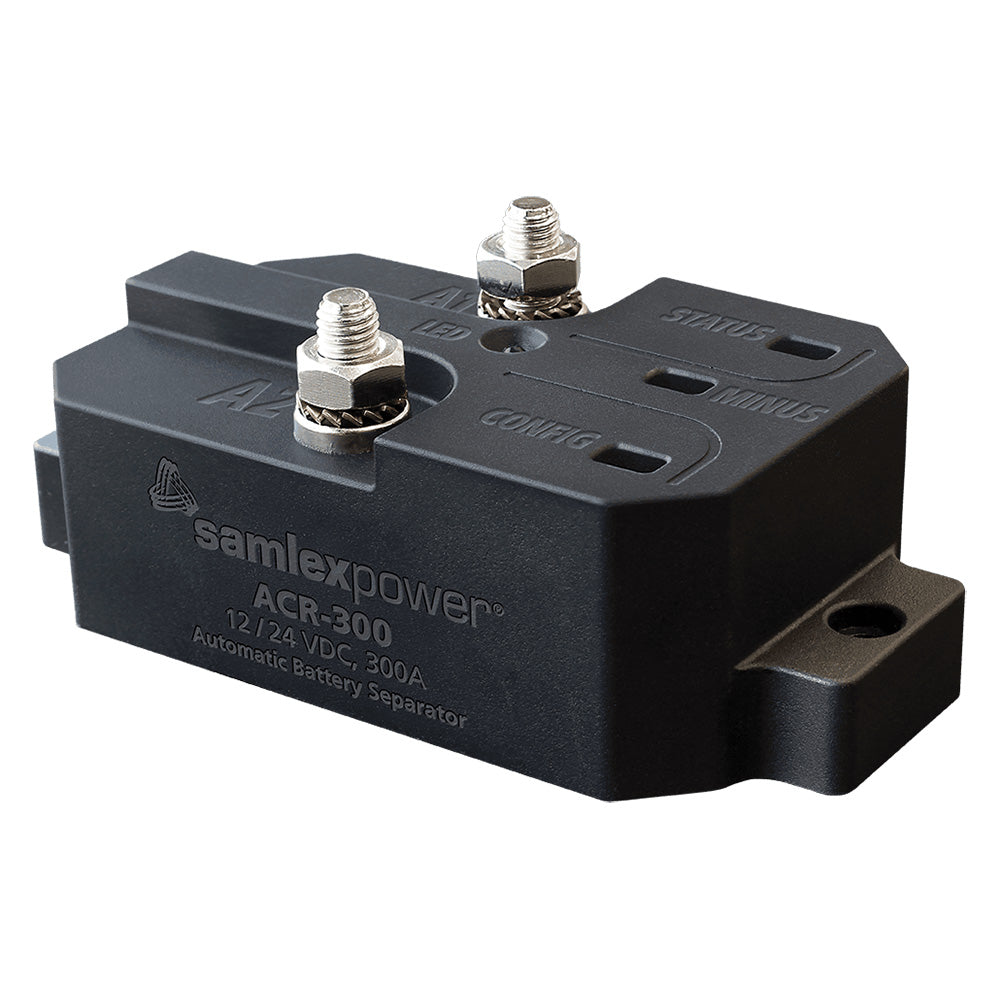

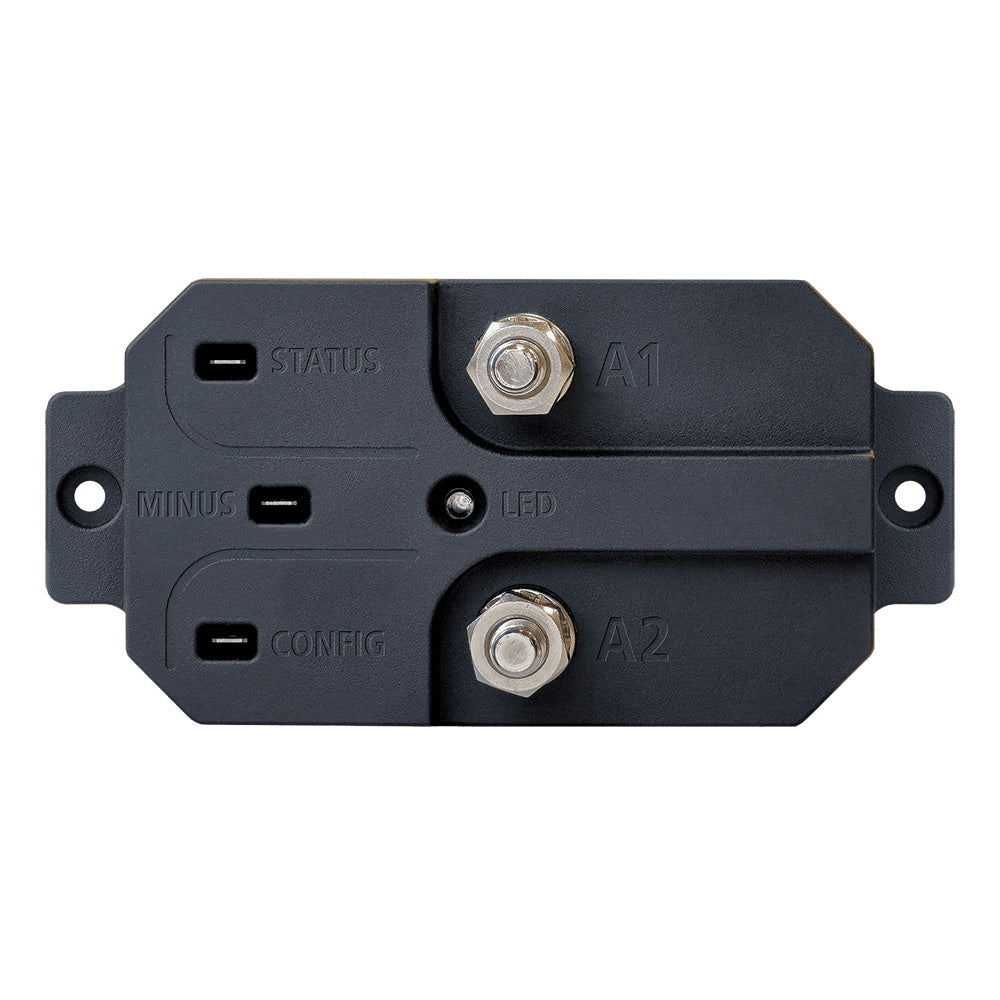

ACR-300 Automatic Charge Separator 300 AMP
The ACR-300 combines battery banks for charging and isolates them when charging has stopped. It provides priority for charging only the starter battery first and protects from excessive discharging of the starter battery. The Automatic Charge Separator is also referred to as a battery separator, battery isolator, or an automatic charging relay.
Features:
Microprocessor-controlled, dual-sensing
Starter battery priority
Easy to install – does not require changing the existing circuit or the alternator
Potted, waterproof, sealed unit
Low standby current
Automatic detection of 12 or 24 VDC systems
300 Amp continuous rated
Over-voltage protection
Built-in status LED
Specifications:
Input: 12/24 VDC
Output: 12/24 VDC
Amps: 300
Dimensions: 170 x 82 x 65 (mm)
Dimensions: 6.69 x 3.23 x 2.56 (in)
Weight: 1.97 (lbs)
Weight: 0.895 (kg)
2 Year Limited Warranty
