Scanpod Helm Pod System - White
With great new design features, the Scanstrut Helm Pod is a perfect choice for all cockpit configurations.
With options to fit radar displays, chartplotters and standard navigation instruments.
Usable face : 21w x 11h
Range of Models

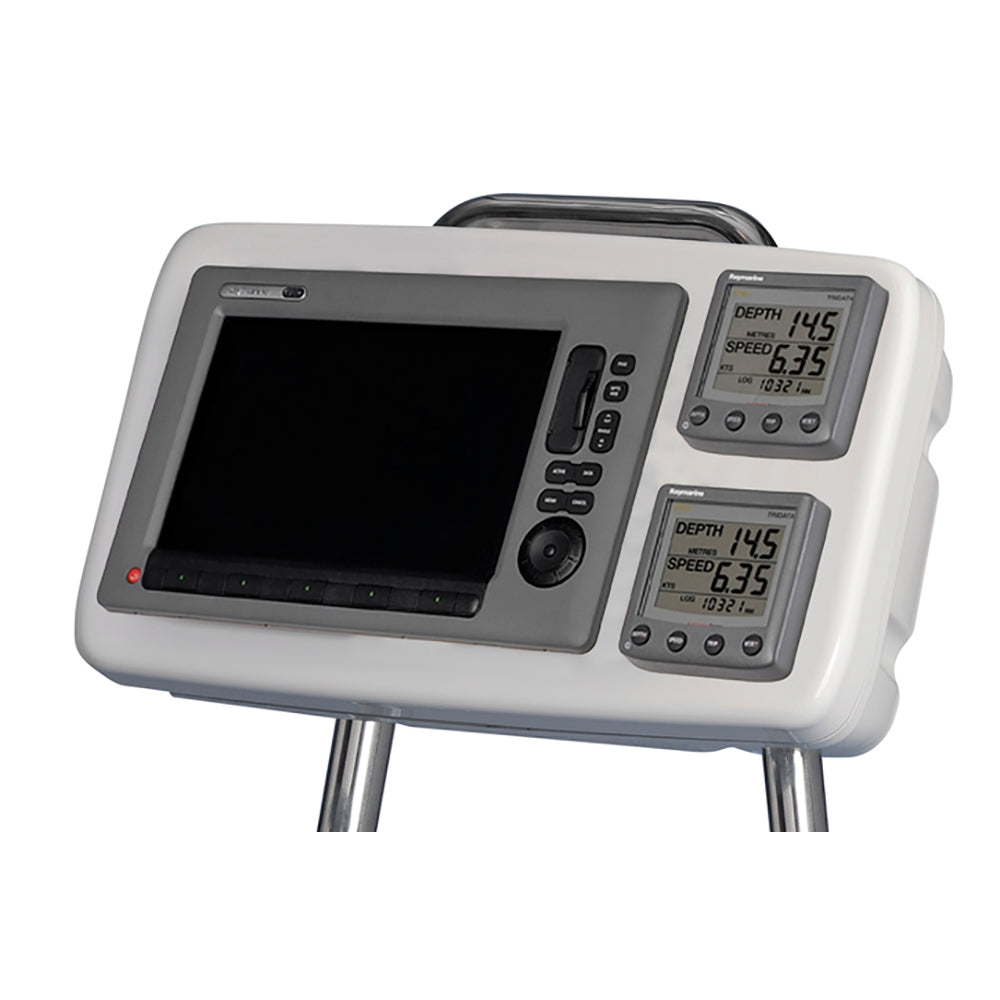

Helm Pod – System Pod for 8" screen + 4 standard nav instruments; or 12" screen + 2 standard nav instruments
Universal Helm Fixing
Fits pedestal rails from 25mm to 33.7mm (0.98" - 1.33"). Using a unique clamping system, the Pod can fit rail widths from 178mm (7") upwards.
Secure & Watertight Install
Saddle system supports the stainless tubing enabling a secure and rigid fit onto any pedestal and also ensures a watertight seal at cable entry
No Drill Fixing Kit
Customised U-bolts fit around rail and through the saddles into the back of the pod eliminating the need for time consuming and awkward drilling of the stainless rail.
Hassle Free Install & Service
Fixings fit from back to front cutting their threads into injection moulded ABS inserts designed into the Pod front. This design allows for a quick and safe install and repeat servicing.
Increased Protection
Pod seal is manufactured from a high tear strength silicone, it has a very high resistance to heat and UV so you can have confidence that it won't deteriorate over time.
Supplied Uncut
As standard you will receive your Scanpod uncut. For larger orders, a factory cutting service is available.
Specifications:
- Cut/Uncut: Uncut
- Mounting Style: Pedestal
- Usable Face: 21"W x 11"H
- Box Dimensions: 9"H x 14"W x 24"L WT: 11.2 lbs
- UPC: 5060114792722
