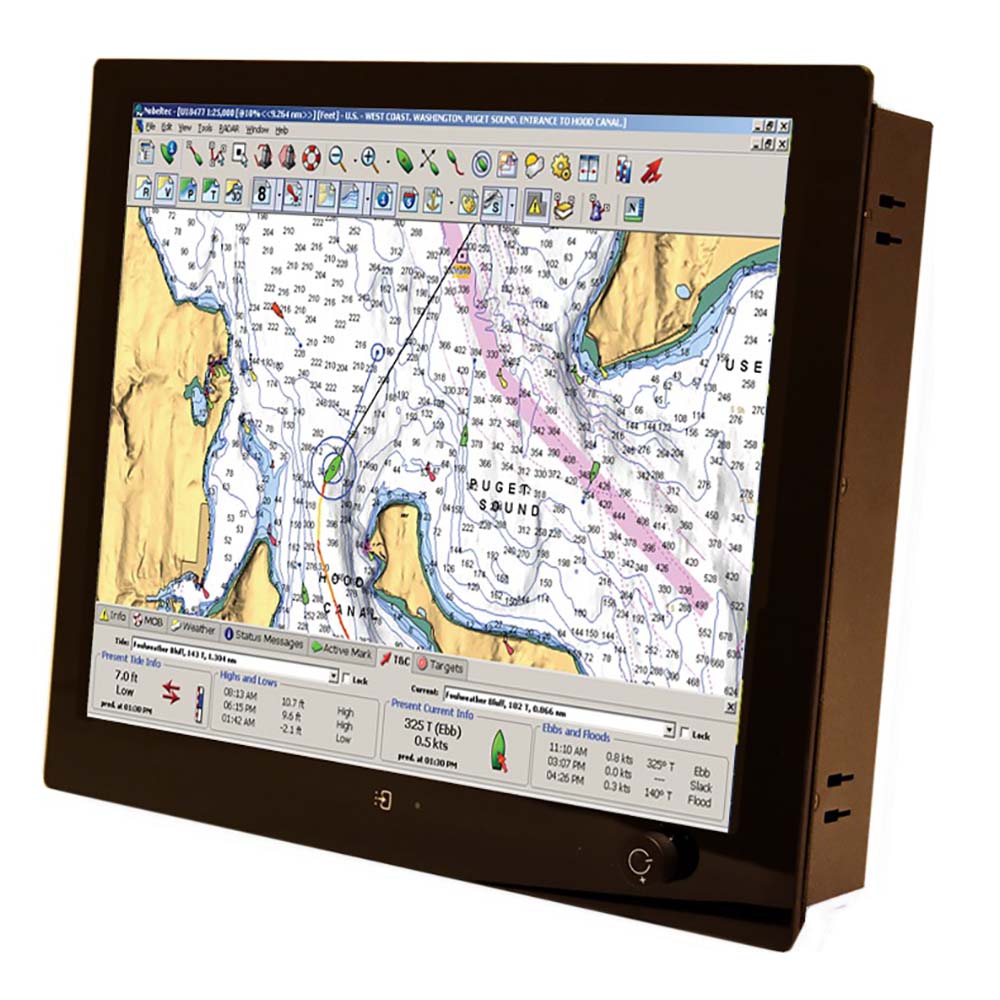

Seatronx 17" Pilothouse Touch Screen Display

17" Pilothouse Touch Screen Display

Seatronx glass bridge displays are the perfect fit for those looking for rugged design combined with attractive styling.

The pilothouse displays feature up to 300 nits of low-power LED backlighting, which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control.

Features:

• Mounting - Panel Mount , Vesa Mount
• Dimensions - 15.62" x 13.46" x 2.28"
• Cutout Dimensions -  14.92" x 12.75" x 2.40"
• Projected Capacitive Touch
• Optical Bonding
• Optional Remote Control

Technical Specifications:

• Diagonal (active area) Inch - 17"
• Native Resolution (Pixels) - 1280x1024
• Contrast Ratio - 1000:1
• Brightness - 350
• Viewing Angle (left, right) - 85, 85
• Viewing Angle (up, down) - 80, 80
• Backlight Dimming - 0 - max
• Backlight Lifetime (Hrs) - 50,000
• Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
• Power Source - 9-34V + and -
• Power Consumption (AMPS @ 24VDC) - 3
• Inlet Plug DC Power - Screw Terminal
• Sealing Front - IP68 with Potentiometer
• Operating Temperature (°C) - -30 to 85
• Storage Temperature (°C) - -30 to 85

Specifications:

• AC/DC: DC
• Amperage: 1.5
• Resolution (VxH): 1280x1024
• Screen Size: 17"
• Touchscreen: Yes
• Box Dimensions: 7"H x 22"W x 31"L WT: 20 lbs
• UPC: 850036822134
