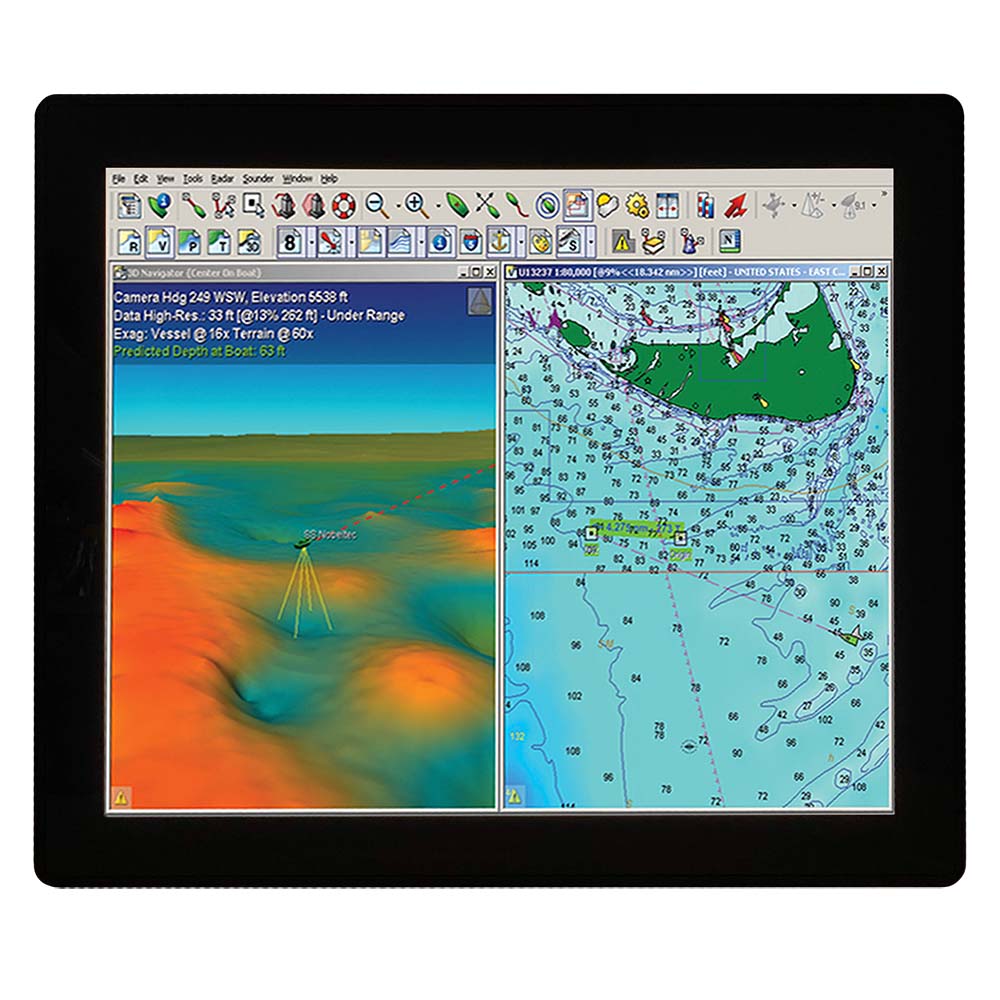

Seatronx 17" V Series Sunlight Readable Touch Screen Display

17" V Series Sunlight Readable Touch Screen Display

The Seatronx V-Series is quite simply the greatest marine display available today. Designed to perfection from the inside and out, the Seatronx V-Series Display features superior picture quality with a clean, sleek design that’ll make even the toughest critic take notice.

The V-Series offers an amazing 9 inputs that eliminate the need for additional expensive switching systems. Now you can view cameras, vessel monitoring, navigation, communication computers, and the newest black box systems from Garmin and Furuno, from each display – saving you money while keeping your bridge looking sharp.

Features:

• Remote control VIA RS232 or IP
• Optical bonding
• Projected Capacitive touch
• Mounting - Panel Mount
• Dimensions front (w x h x d) - 15.70" x 13.039" x 3"
• Cutout Dimensions (w x h x d) - 15.127" x 12.547" x 3"
• IPS Technology
• Parameter adjustment - Remote Keypad
• Power on/off - Remote Keypad

Technical Specifications:

• Diagonal (active area) Inch - 17.0"
• Native Resolution (Pixels) - 1080x1024
• Contrast Ratio - 1000:1
• Sunlight Readable - 1000+
• Viewing Angle (left, right) - 89, 89
• Viewing Angle (up, down) - 89, 89
• Backlight Lifetime (Hrs) - 50,000+
• Inputs - 2xDVID, 2xVGA, 1xDP, 4xComp
• Power Source - 9-36V + and -
• Voltage Converter - 9-36V (isolated)
• Power consumption AMPS at 24vdc - 3
• Inlet plug dc power - Screw Terminal
• Sealing Front - IP65
• Operating temperature (°C) - -10 to 70
• Storage temperature (°C) - -20 to 80

Specifications:

• AC/DC: DC
• Amperage: 3
• Resolution (VxH): 1280x1024
• Screen Size: 17"
• Touchscreen: Yes
