Description

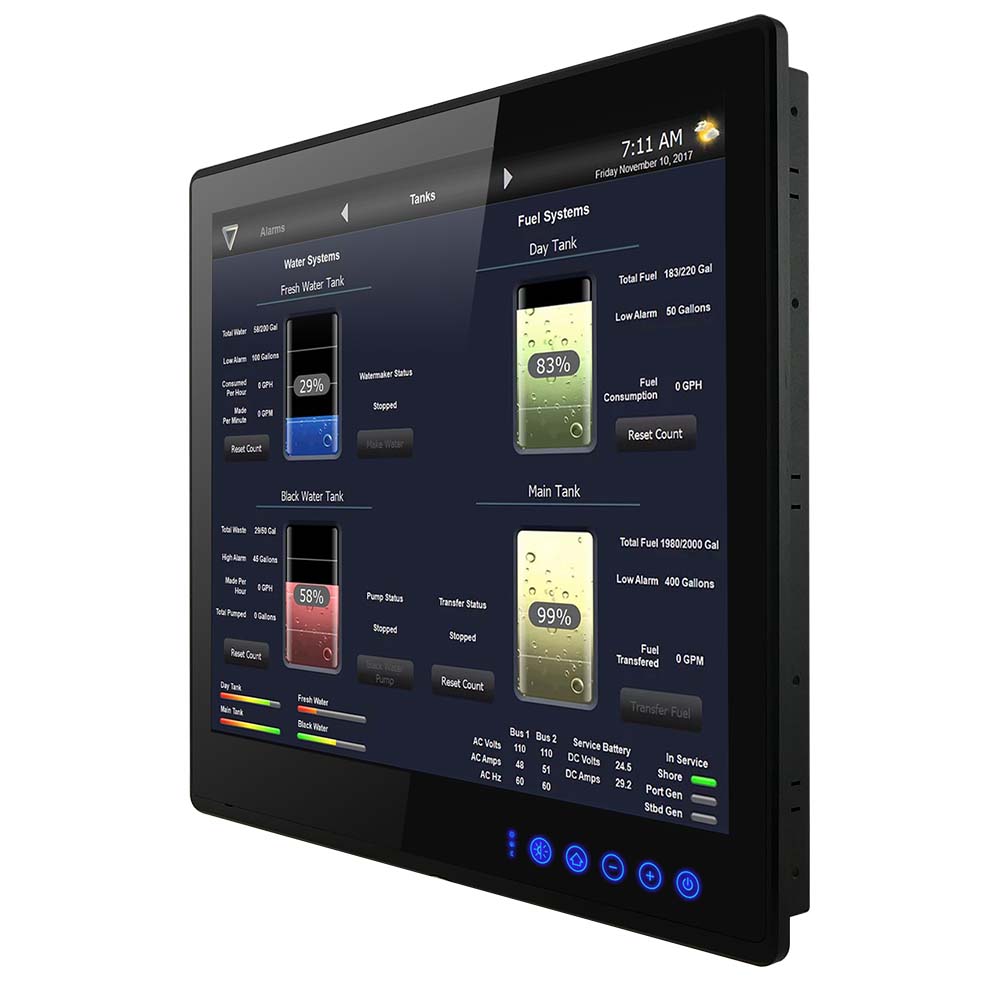

19" Commercial Touch Screen Display
Electronic Chart Display and Information Systems (ECDIS) are designed to meet International Maritime Organization (IMO) compliance regulations. These displays are color calibrated for optimal electronic chart viewing and feature capacitive touch keys for quick function access and display control (support ECDIS day, dusk, and night mode switching).
Features:
Mounting - Panel Mount , Vesa Mount
Dimensions - 16.889" x 15.433" x 2.866"
Cutout Dimensions - 16.03" x 14.13"
Projected Capacitive touch
Optional ECDIS Color Calibration
2x 2W Speakers
75 dB - 80 dB buzzer
Technical Specifications:
Diagonal (active area) Inch - 19"
Native Resolution (Pixels) - 1280x1024
Contrast Ratio - 1200:1
Brightness - 350
Viewing Angle (left, right) - 89, 89
Viewing Angle (up, down) - 89,89
Backlight Dimming - -0 (3 Stage ECDIS Option)
Inputs - 1 x VGA, 1 x DVD-D, 1 x HDMI 2.0, 1 x HDMI 1.4, 1 x Display Port 1.2
Power Source - 9-36VDC Isolated power supply 60W (Max)
