Description
THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS. IF IN STOCK ITS A LOCAL PICK UP ONLY!

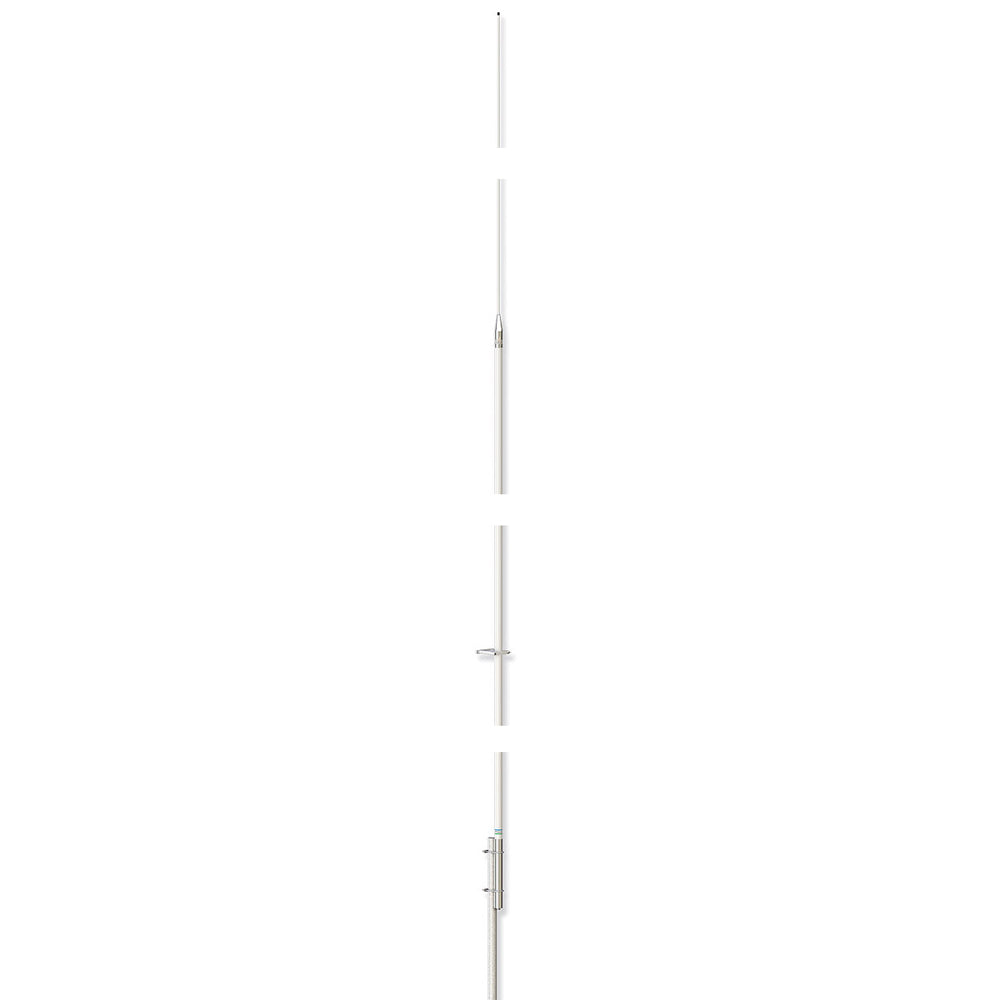

Shakespeare Style 4018-M VHF Marine
19' LENGTH, 9dB
PHASED 1/2-WAVE ELEMENTS IN A COLLINEAR ARRAY WITH A COAXIAL CHOKING SLEEVE TO SUPPRESS CABLE RADIATION
Same as Style 4018 with a special sleeve for mast mounting. Used primarily for land-based stations and on commercial vessels.
The top choice for charter boat captains and experienced sport fishing enthusiasts. This long-distance VHF antenna is rigid enough to stay erect in rough seas, yet exceptionally lightweight.
Brass and copper elements
Chrome-plated brass mid section ferrules and aluminum sleeve bottom ferrule
SO-239 connector at base

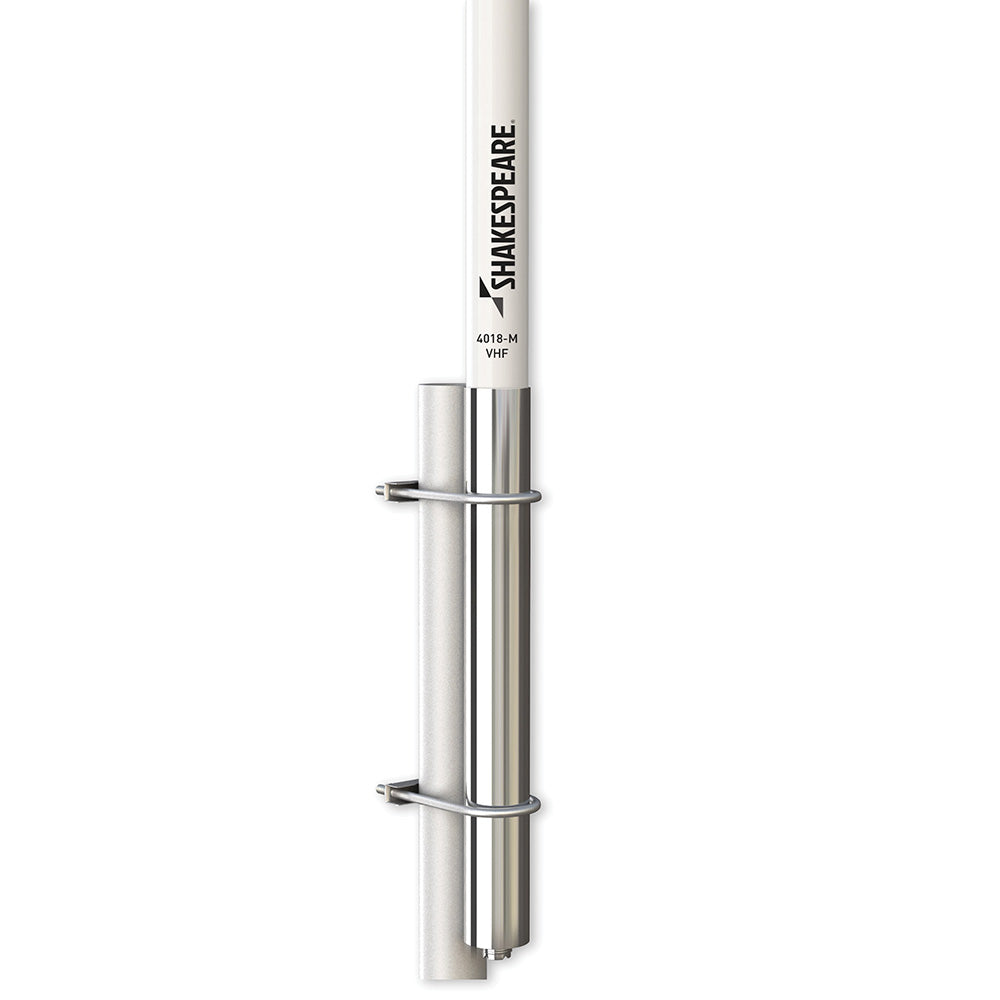

Suggested mount: Mast mount using supplied 1-1/3" U-bolts. The 4018-M can be strapped to a larger mast if steel banding (not supplied) is used.
Two sections: Base 162"; Tip 66":
Shakespeare Limited Warranty: 2 years
Technical Specifications:
Frequency:
VHF Marine band
Bandwidth:
(within 2.0:1 VSWR) 3 MHz
SWR:
1.5:1 at 156.8 MHz
Impedance:
(ohms): 50
Gain:
9 dB
Max Input (Watts):
25
DC Ground:
NO
Termination:
SO-239
Height (feet):
19
Polarization:
Vertical
Radiation pattern:
Omni-directional
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
