SI-TEX SP-120 Color System w/Rudder Feedback 18CI Pump

SP-120 Color System with Rudder Feedback & 18CI Pump

Features:

• The SI-TEX SP-120C is an Autopilot designed for hydraulic steering, mechanical steering, & solenoid control
• Does not require a separate junction box, everything simply connects to the rear of the control head
• This Autopilot is ideal for small vessels under 38'
• The Autopilot can operate in either Virtual Rudder feedback mode in the case of Outboards or a separate Rudder Feedback unit can be added for inboard vessels
• SP-120C displays actual Compass heading & Selected Heading, along with Rudder Angle Displays simultaneously
• Compact 4.1” x 4.1” Splash proof Control head with large easy to read Color LCD LCD Display
• Extremely easy to select your desired headings, operate, and setup, with new user friendly software
• High performance 9 Axis Rate Gyro Compass provides the autopilot with excellent steering response
• Autopilot uses Input of GPS Speed over ground (SOG) and Course over ground (COG) to
• enhance performance
• NMEA-0183 GPS Interface accepts inputs from most Chart plotters for steering to waypoints and routes
• NMEA-0183 Output of Compass heading at 10kHz for interface to MFD’s with Chart/Radar Overlay
• Autopilot Steering Modes:
• Manual (Power Steer)
• Auto (Pilot maintains selected Magnetic course)
• GPS (Steers to Waypoint or Routes when Interfaced with GPS)
• Wind (Steers to wind when interfaced to wind sensor for Sailboat installations)
• Protected by 2 Year SI-TEX Warranty

Specifications:

• Waterproof: IPX6
• Control Head Dimensions: 110 mm L x 110 mm W
• Voltage supply VOLTAGE: 12/24 Volts DC
• LCD Color LCD Display
• Constant Compass Heading Indicator and Rudder Angle Indicator
• Current consumption: 0.5 amps at 12VDC in standby mode
• Maximum Drive Output Current 15 Amps
• Operating temperature: -10ºC to +55ºC
• Data Connections: NMEA-0183 GPS Input, NMEA-0183 10kHz Compass heading Output
• Course Detection <1 Degree

Package Includes:

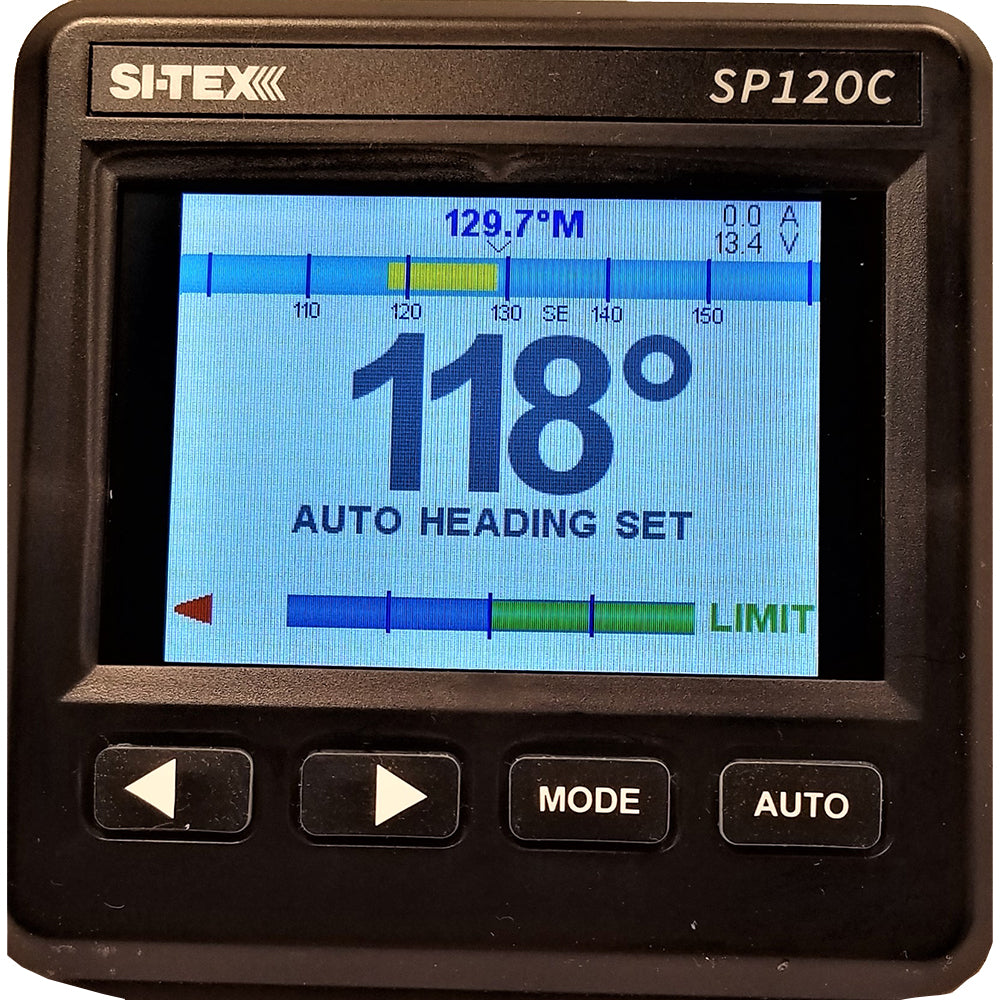

• SI-TEX SP-120C Color LCD Autopilot Control Head
• NMEA Interface Cables
• 9 Axis Electronic Rate Gyro Compass
• Control Head Sun cover
• Product manual
• Mounting Screws
