Suncor Heavy Duty Special Eye Bolt

Name: Suncor Heavy Duty Special Eye Bolt
Brand: Suncor
SKU: S0319-0804
Price: 14.92 USD
Availability: OutOfStock

SuncorSKU: S0319-0804

Size: 5/16″

Variant

Price:

$14.92

Stock:

Sold out

Quantity:

Grade: 316 Stainless Steel

Thread Type: UNC

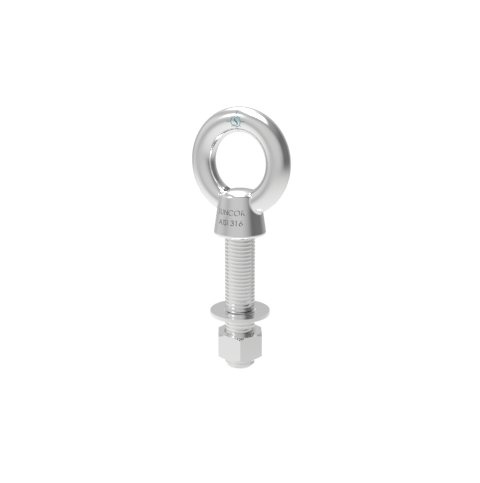

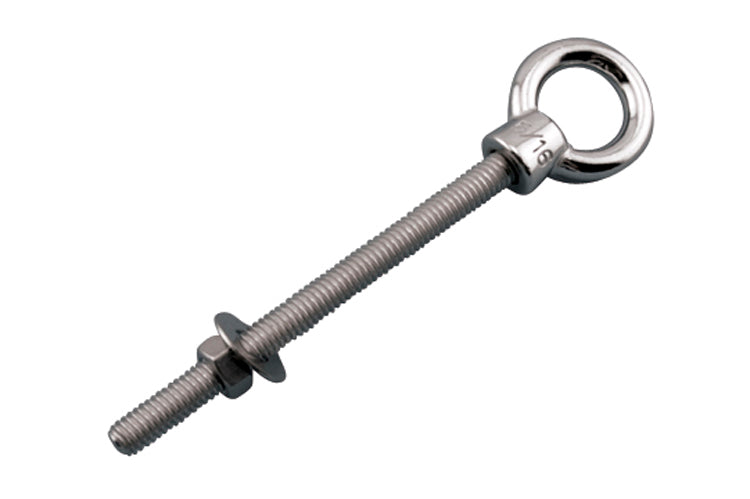

The Heavy Duty Special Eye Bolt features a fully threaded rod welded into an eye nut. It includes one nut and washer and is UNC thread. This eye bolt is available in sizes ranging from 1/4″ to 1″ and is made from grade 316 stainless steel for durability and corrosion resistance.

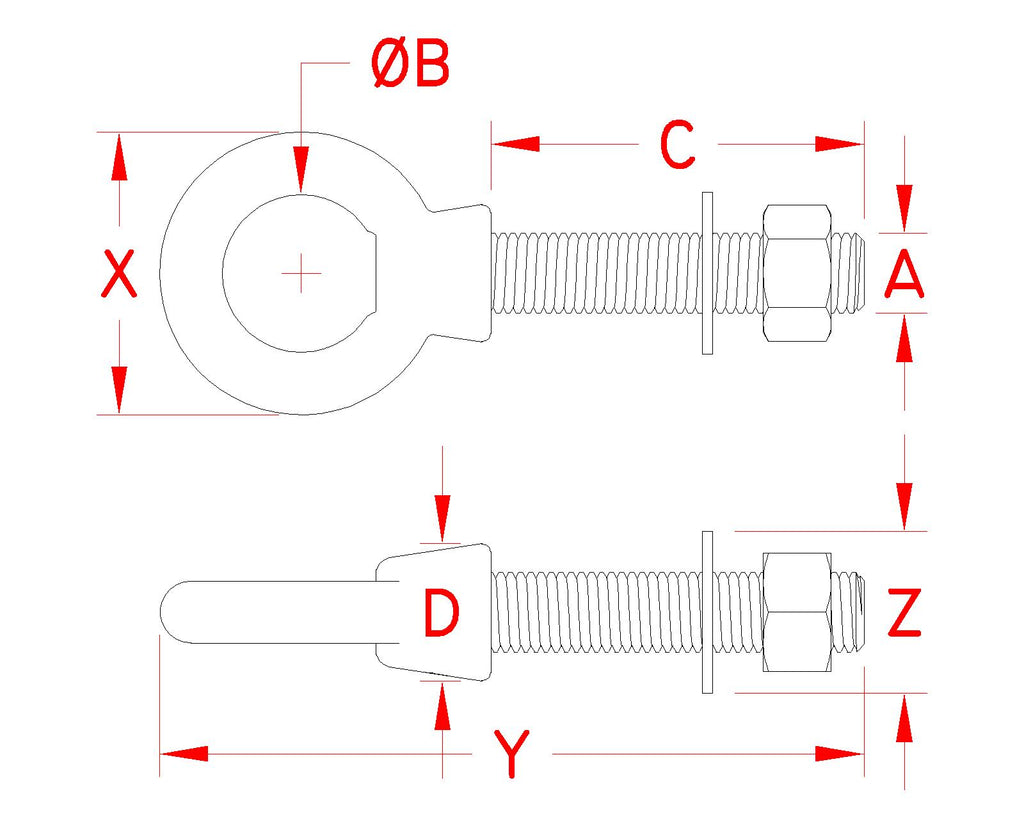

ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.

ITEM	A (size)	B	C	D	X	Y	Z	WLL (lb)	WT (lb)
S0319-0702	1/4″	0.62″	2.00″	0.48″	1.08″	3.21″	0.62″	400	0.07
S0319-0712	1/4″	0.62″	12.00″	0.48″	1.08″	13.25″	0.62″	400	0.17
S0319-0804	5/16″	0.75″	4.00″	0.62″	1.30″	5.56″	0.75″	700	0.16
S0319-0812	5/16″	0.75″	12.00″	0.62″	1.30″	13.50″	0.75″	700	0.30
S0319-1005	3/8″	0.97″	5.00″	0.76″	1.60″	7.02″	0.88″	1,000	0.29
S0319-1012	3/8″	0.97″	12.00″	0.76″	1.60″	13.90″	0.88″	1,000	0.46
S0319-1306	1/2″	1.17″	6.00″	0.95″	1.96″	8.40″	1.06″	2,000	0.60
S0319-1312	1/2″	1.17″	12.00″	0.95″	1.96″	14.50″	1.06″	2,000	0.86
S0319-1606	5/8″	1.34″	6.00″	1.19″	2.45″	8.70″	1.31″	3,200	1.10
S0319-1612	5/8″	1.34″	12.00″	1.19″	2.45″	14.75″	1.31″	3,200	1.51
S0319-2006	3/4″	1.57″	6.00″	1.33″	2.76″	9.40″	1.55″	4,700	1.61
S0319-2012	3/4″	1.57″	12.00″	1.33″	2.76″	15.25″	1.55″	4,700	2.24
S0319-2018	3/4″	1.57″	18.00″	1.33″	2.76″	21.50″	1.55″	4,700	2.85
S0319-2509	1″	2.00″	9.00″	1.70″	3.50″	13.15″	2.00″	7,000	3.75
S0319-2518	1″	2.00″	18.00″	1.70″	3.50″	22.25″	2.00″	7,000	5.39

Suncor Heavy Duty Special Eye Bolt

Description

Grade: 316 Stainless Steel

Thread Type: UNC
