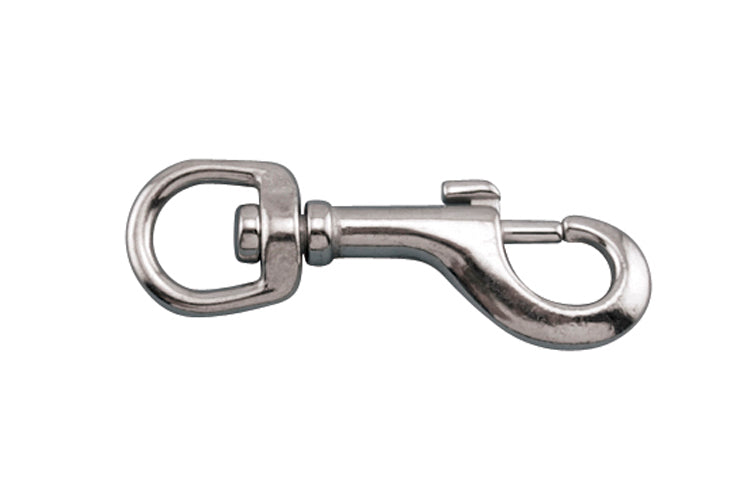

Suncor Swivel Bolt Snap

SuncorSKU: S0176-0001

Price:
Sale price$11.90

Description

Grade: 316 Stainless Steel

The Swivel Bolt Snap is made from grade 316 stainless steel for maximum corrosion resistance and durability. These stainless steel Swivel Bolt Snaps are available in multiple sizes, making them ideal for various marine and industrial applications.

ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.

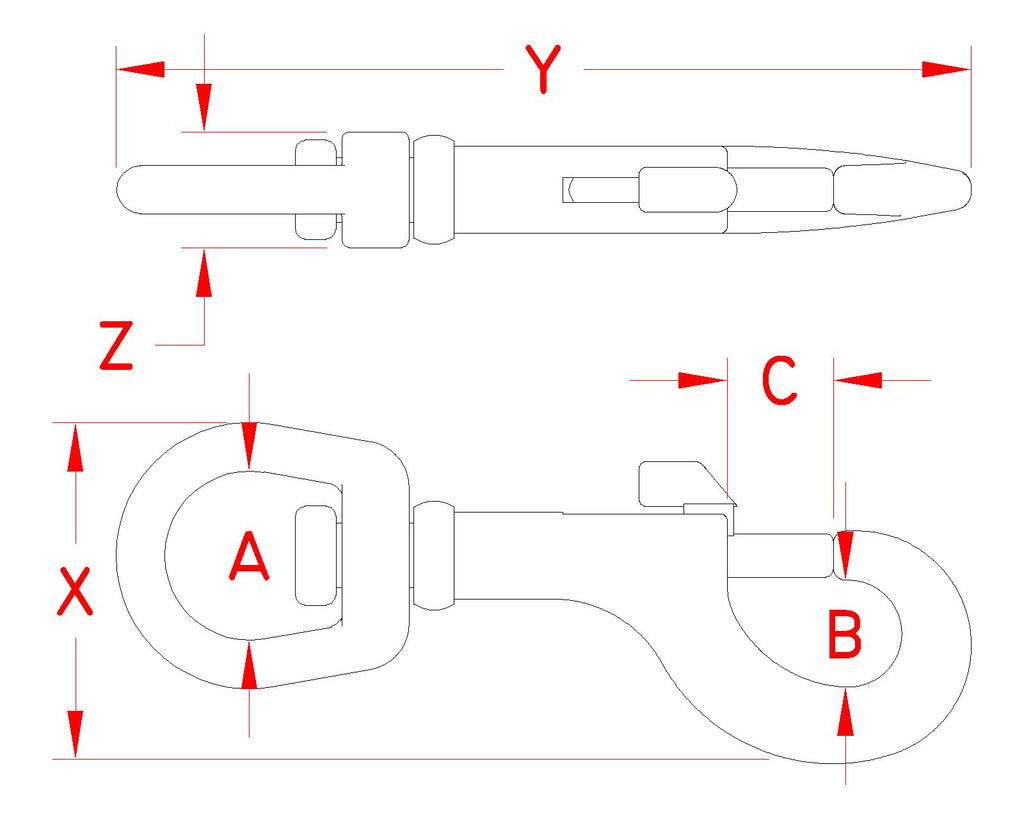

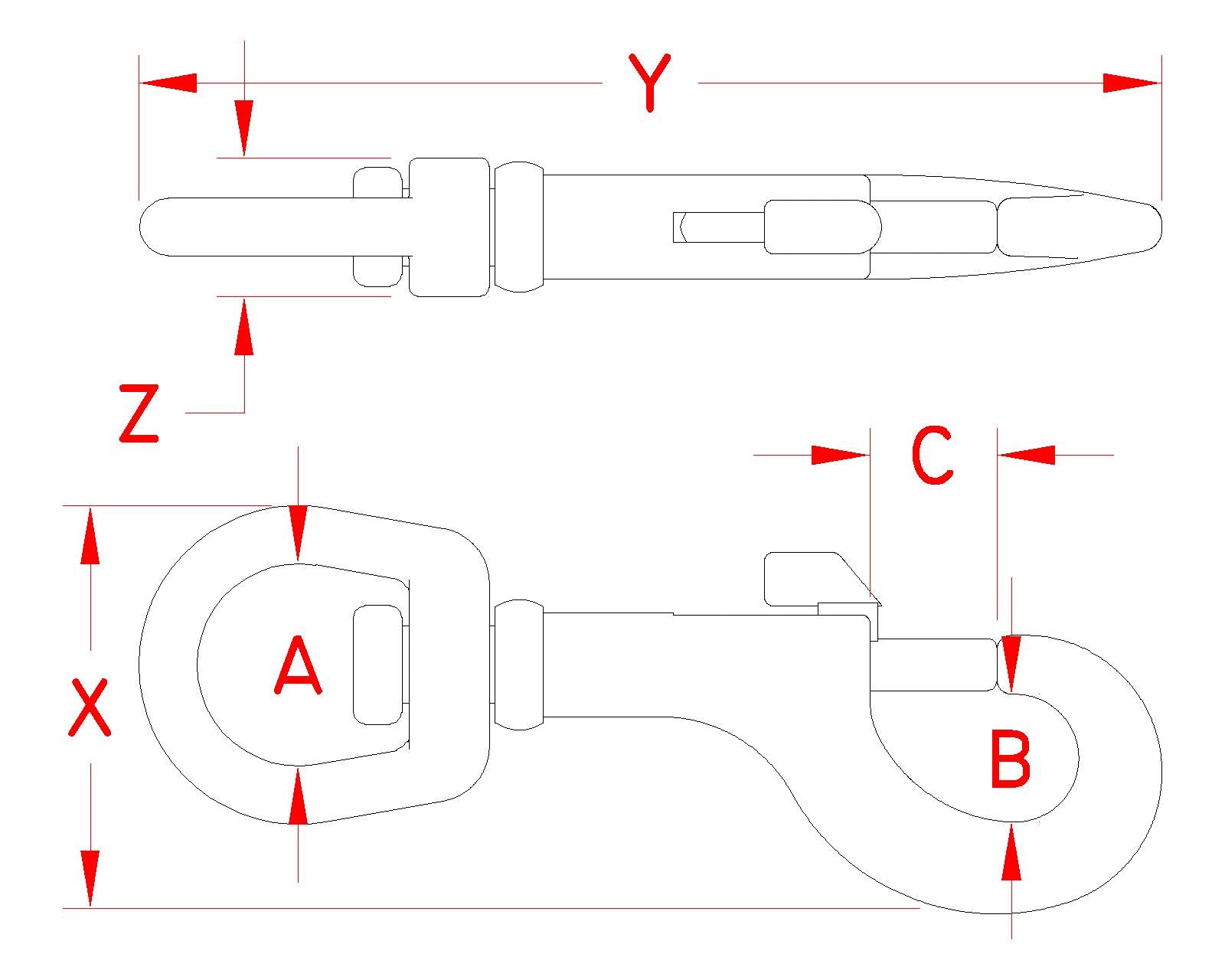

ITEM A
(size)
B C X Y Z WLL
(lb)
WT
(lb)
S0176-0000 3/8″ 0.32″ 0.28″ 1.00″ 2.73″ 0.39″ 100 0.05
S0176-0001 1/2″ 0.36″ 0.37″ 1.10″ 3.07″ 0.46″ 200 0.08
S0176-0002 5/8″ 0.43″ 0.36″ 1.18″ 3.42″ 0.46″ 250 0.11
S0176-0003 3/4″ 0.43″ 0.36″ 1.20″ 3.65″ 0.49″ 300 0.12
S0176-0004 1-1/4″ 0.48″ 0.53″ 2.02″ 4.92″ 0.66″ 350 0.28
