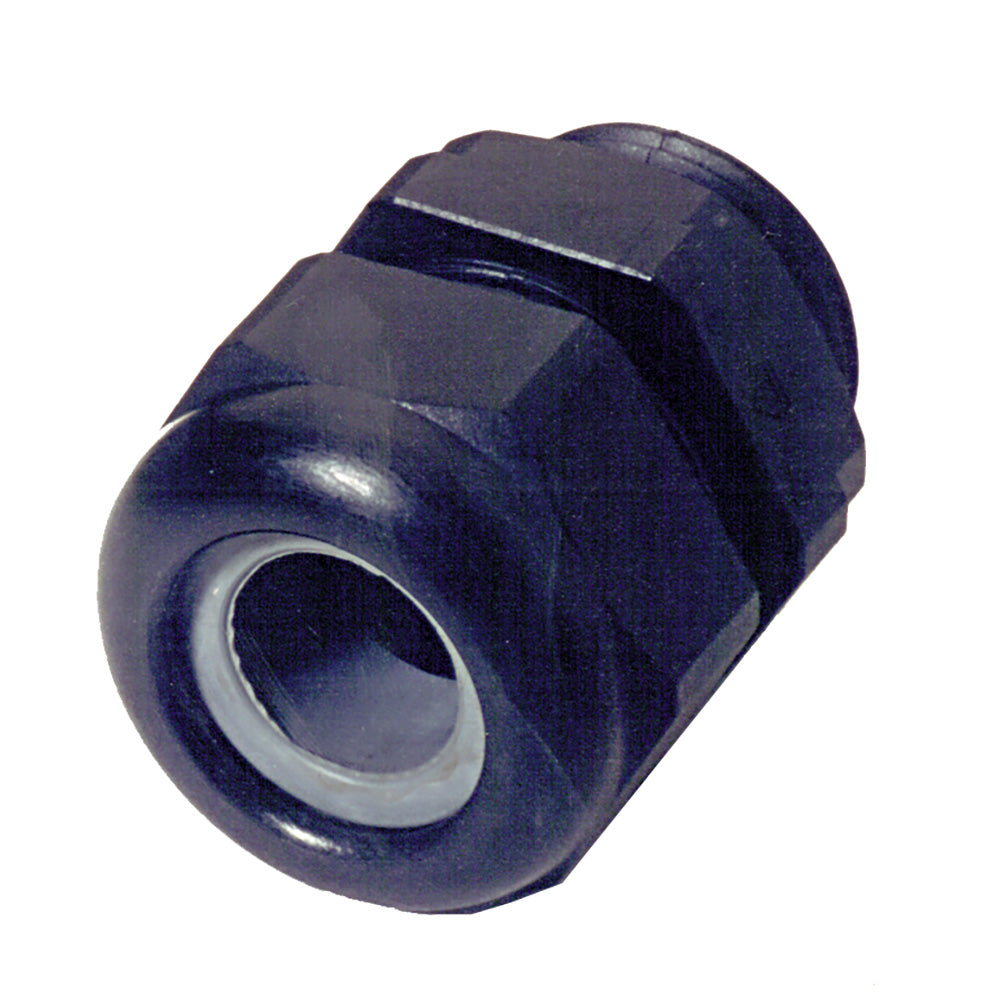

Trident Marine 1/2" Straight Thru Fitting f/Use w/LPG Supply Hoses

1/2" Straight Thru Fitting for Use with LPG Supply Hoses

Meets ABYC Standard for non-abrasive and vaportight (non-pressurized) seal of continuous length of LPG supply line passing “Straight-Thru” watertight bulkheads and decks from inside cylinder locker to each appliance. #1438-8439 slides over and seals around our LPG hose assemblies (except #40407 & 42421) through bulkhead or decks up to 1/2″ thick. #1438-8876 fits over and seals around 1/4″ to 3/8″ LPG copper tubing (before flare nuts attached) through bulkheads and decks up to 3/8″ thick. 3-piece nylon construction with lock nut & BUNA-N sealing gland resists salt water, fuels, weak acids, and common solvents. Properly installed, it will withstand up to 70 PSI water pressure and working temperatures -22 to 212 degrees F Other sizes on special order. Cut a 1.35″ hole to install (1438-8439).

Specifications:

• Size: 3.5”H x 7.5”W x 2.5”D
