Description

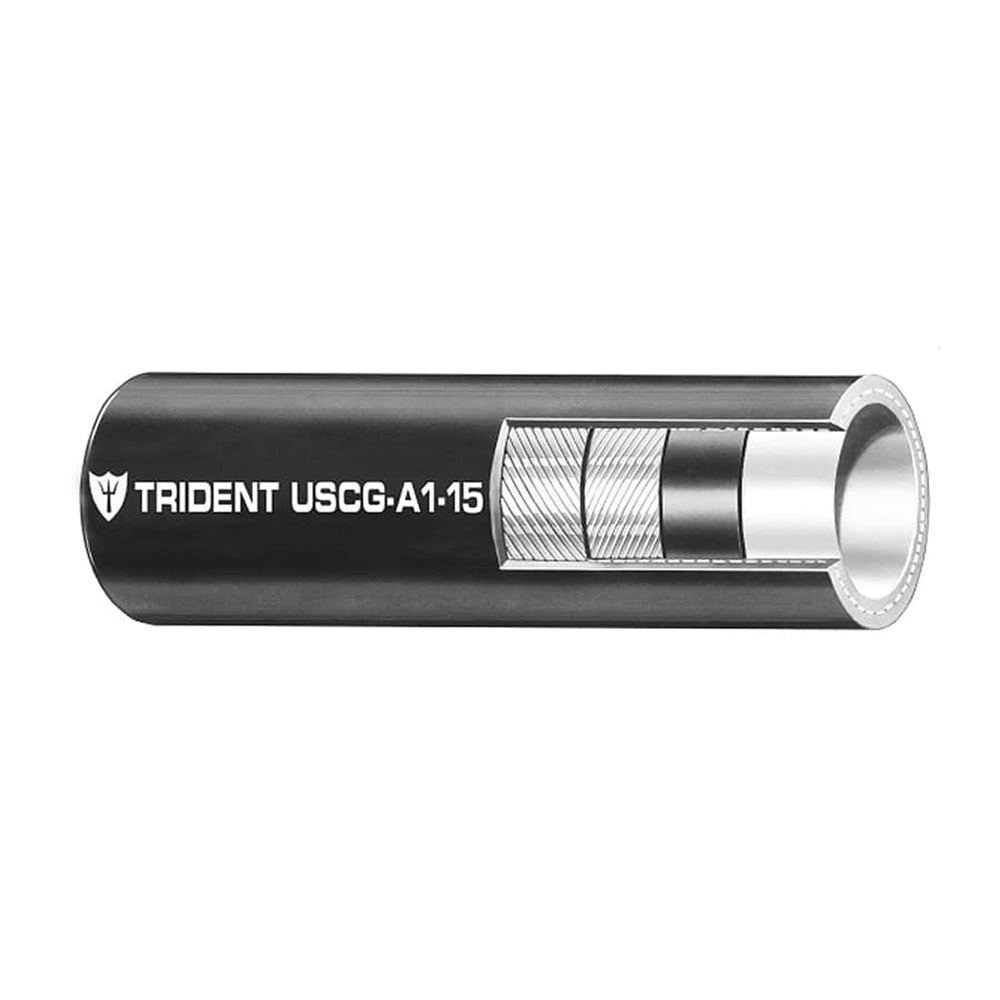

5/16" A1-15 Reel Low Permeation Fuel Line Hose - Black - Sold by the Foot
Trident Barrier Lined A1-15 Fuel Hose for both gasoline (including ethanol blends up to 85%) and diesel (including bio diesel blends up to B100). This hose is built with the best fuel, fire, and age-resistant formulation and a unique "Barrier Liner" on the inside surface of the tube, so the fuel is not in direct contact with rubber.
Features:
Sold by the foot
Provides extraordinary resistance to fuel permeation, aging, and also to fire, heat, cold, and the ozone
Also provides excellent bend-ability
NMMA Type Accepted & CE certified
Application:
Marine Fuel Hose for distribution, return, vent and transfer
For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel
Construction:
Tube: Nylon Internal Barrier, NBR
Cover: NBR/PVC Blend
Reinforcement: Polyester 2 spiral
Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
Length: 250 ft. reel (sold by the foot)
Specifications:
Inner Diameter: (inch) 5/16" / (mm) 7.92
Outer Diameter: (inch) 0.611 / (mm) 15.5
Burst Pressure: (psi) 400 / (mpa) 2.76
Working Pressure: (psi) 100 / (mpa) 0.69
Bend Radius: (inch) 1.75" / (mm) 44.5
Weight: (lb/100 ft.) 13.3 / (kg/m) 0.198
Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10)
*The #365 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and EPA Certified low permeation Type A1-10
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
