Description

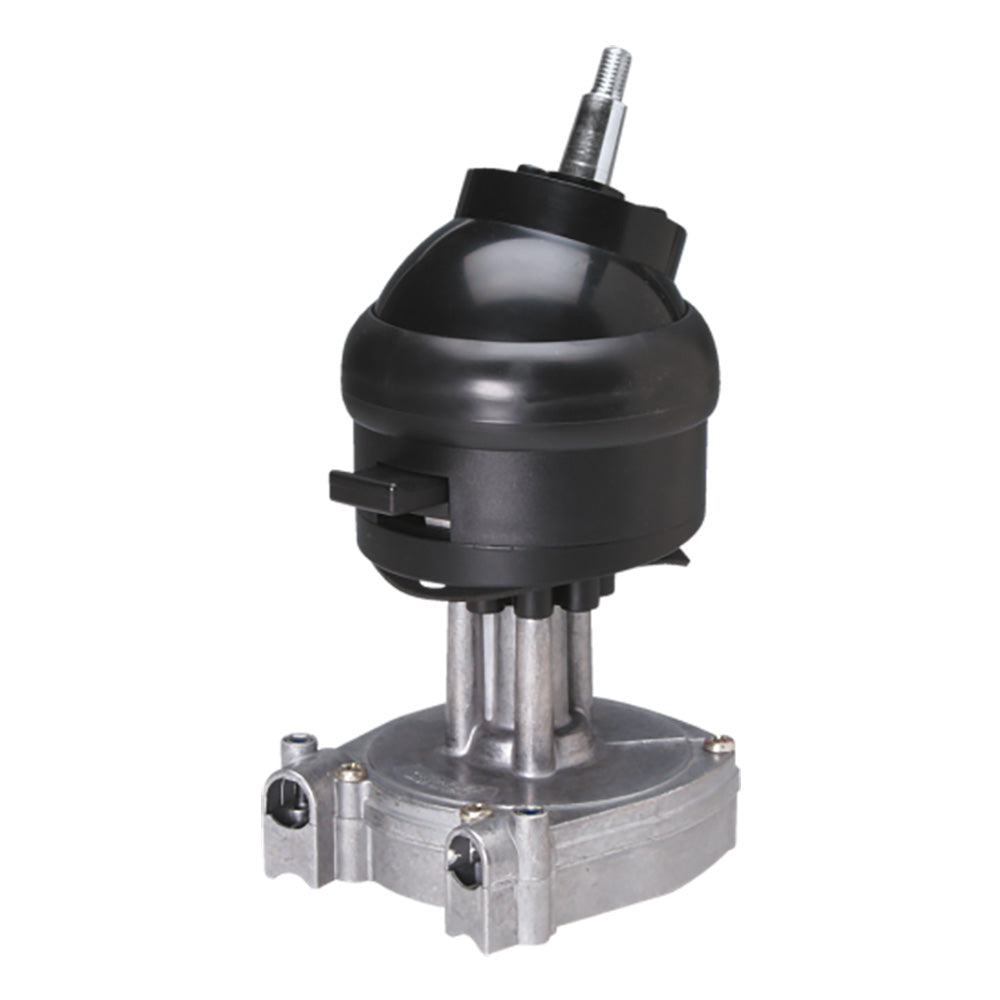

T83FC Zero Torq Rotary Helm Single Cable Steering *Tilt Mechanism Sold Separately
T83FC has a tilt range of 48° and five locking positions, fast to get connected and easily installed with a planetary gear design and 3.8 approx steering wheel turns lock to lock.
Features:
X52 Tilt Mechanism sold separately
Tilt range of 48° and five locking positions
Fast connect, simple installation
The tilt device eliminates under-dash movement
Standard 3/4” tapered shaft – stainless steel
All stainless steel cable output ends
Corrosion resistant materials
T83NRFC steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
X52 tilt mechanism fits Ultraflex tilt mount rotary and rack and pinion steering helms as well as Ultraflex tilt mount hydraulic pumps except SilverSteer™ and MasterDrive™ steering systems
For boats faster than 50 mph, our hydraulic steering systems are recommended
Optional steering wheel
Engine connection kits
Exceeds EN 28848 safety standards
Exceeds ABYC P17 safety standards
Specifications:
M66 steering cable stroke: 228 mm (9")
Lock-to-lock steering wheel turns: Approx. 3,8
Max. dash depth: 25,4 mm (1")
Max. steering wheel diameter: 406 mm (16")
Min. steering cable bend radius: 200 mm (7.9")
*Tilt Mechanism Sold Separately
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
