Description
**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form. **
Cortex V1 - VHF Radio with SOTDMA SmartAIS & Remote Vessel Monitoring - Works Worldwide
Advanced multi-station VHF with intuitive touchscreen operation. Full Class B SOTDMA with smartAIS send and receive and integrated no-loss splitter. Monitor and control onboard systems and keep alerted on board or ashore from your smartphone.
Product Overview:
- VHF - The world's most advanced VHF with multi-station wireless touchscreen handsets
- AIS - Class B SOTDMA smartAIS transponder with an integrated splitter
- Monitor - Tra
Features:
- This Cortex model is made to function Worldwide

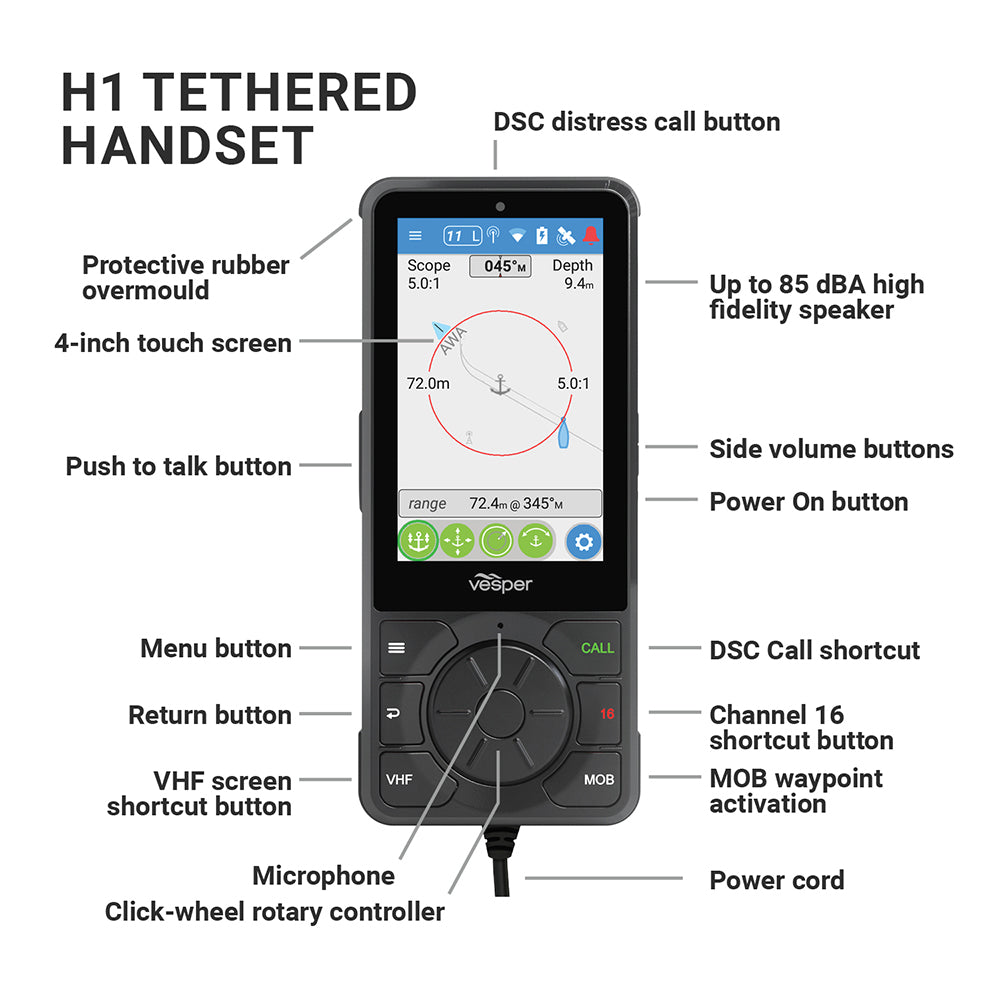

- Includes M1 hub, tethered H1 handset, and accessories
- Built-in Class B SOTDMA with no-loss antenna splitter
- Built-in WiFi and Cellular connectivity on monitoring onboard and ashore
- Low power consumption hub
- 10Hz GPS antenna
- 4-inch multi-touch display with gorilla glass for maximum durability
- Single-hand operation with the click wheel and dedicated buttons
- Wet and glove-capable touchscreen
- Optically bonded display for wide-angle and sunlight viewability, even in the harshest midday sun
- 85 dBA of crystal-clear audio
- Combined AIS and VHF display with voiced alerts
- Touch a vessel onscreen for direct calling (DSC)
- ck, and control, whether onboard or ashore
VHF Reimagined
- A revolution in marine technology that will change your VHF experience forever
- An intuitive touchscreen that is engineered for durability to withstand the rigors of the harsh marine environment
- Audio that's as loud as a train but clear as a bell
- The future of VHF is here
The power of VHF and AIS combined
- Cortex is the world's first VHF with high speed SOTDMA AIS transponder technology, making your boat visible to others
- A built-in heading sensor tells other vessels your direction, helping them more accurately predict potential collisions

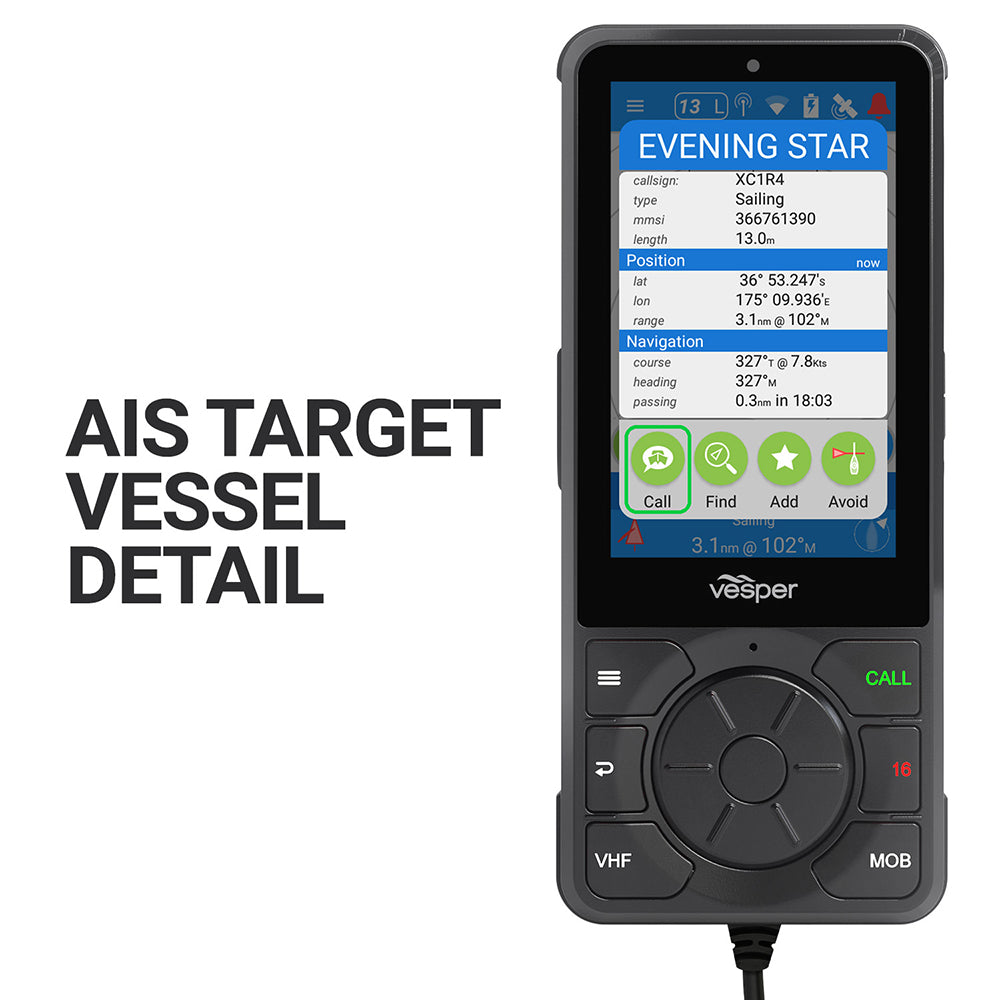

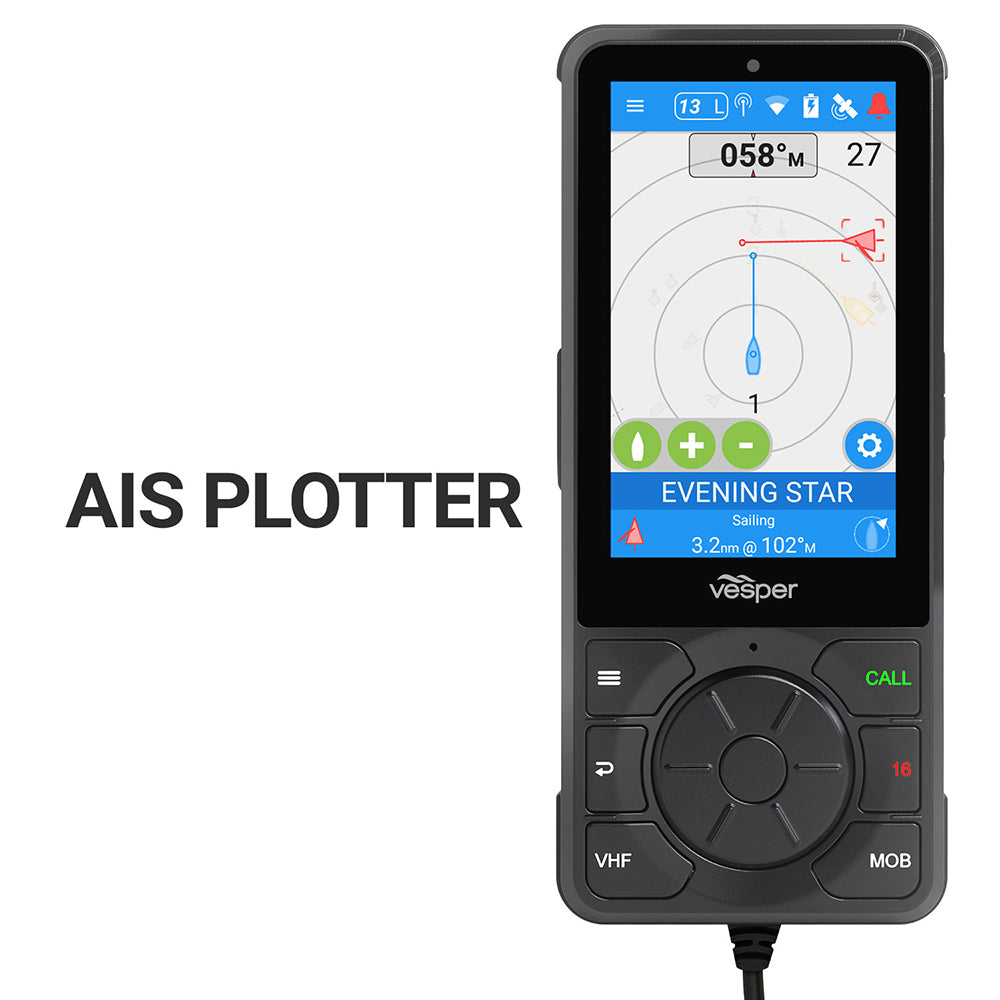

- Be armed with critical information about vessels, AIS marks (AtoNs) and man overboard devices on your MFD, mobile or Cortex handset

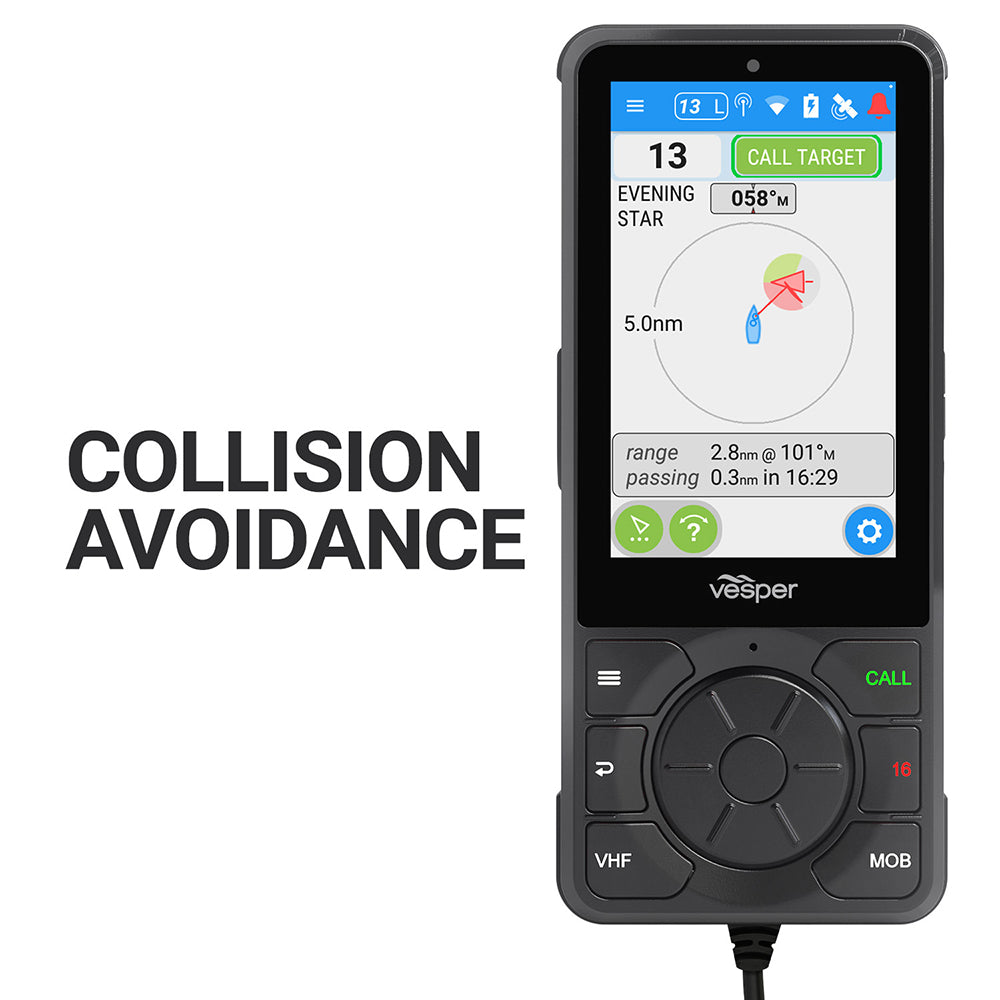

Collision Avoidance & One-Touch DSC
- Cortex continuously calculates crossing situations and generates collision alarms for critical action
- Alerts if your anchor is dragging, and activates MOB alarms for immediate retrieval
- Instead of ambiguous bells or tones, Cortex sounds the alarm with voiced alerts that escalate until acknowledged
- Continuously view crossing situations, navigation light sectors, and complete trial maneuvers while talking on the VHF radio
- Initiate direct calls (DSC) with other vessels by simply tapping the vessel on your handset touchscreen
- Initiate VHF calls to friends or quickly hail another vessel when every second counts
Monitor
- Cortex combines built-in sensors and NMEA2000 connectivity with free basic monitoring
- Using cellular connectivity, you can view twice-daily updates of power, location, wind, depth, bilge, temperature, and more on their smartphones
- The Cortex Monitor Premium subscription unlocks real-time vessel status, instant alerts, and device control for boat systems like refrigerators, icemakers, lights, or heaters

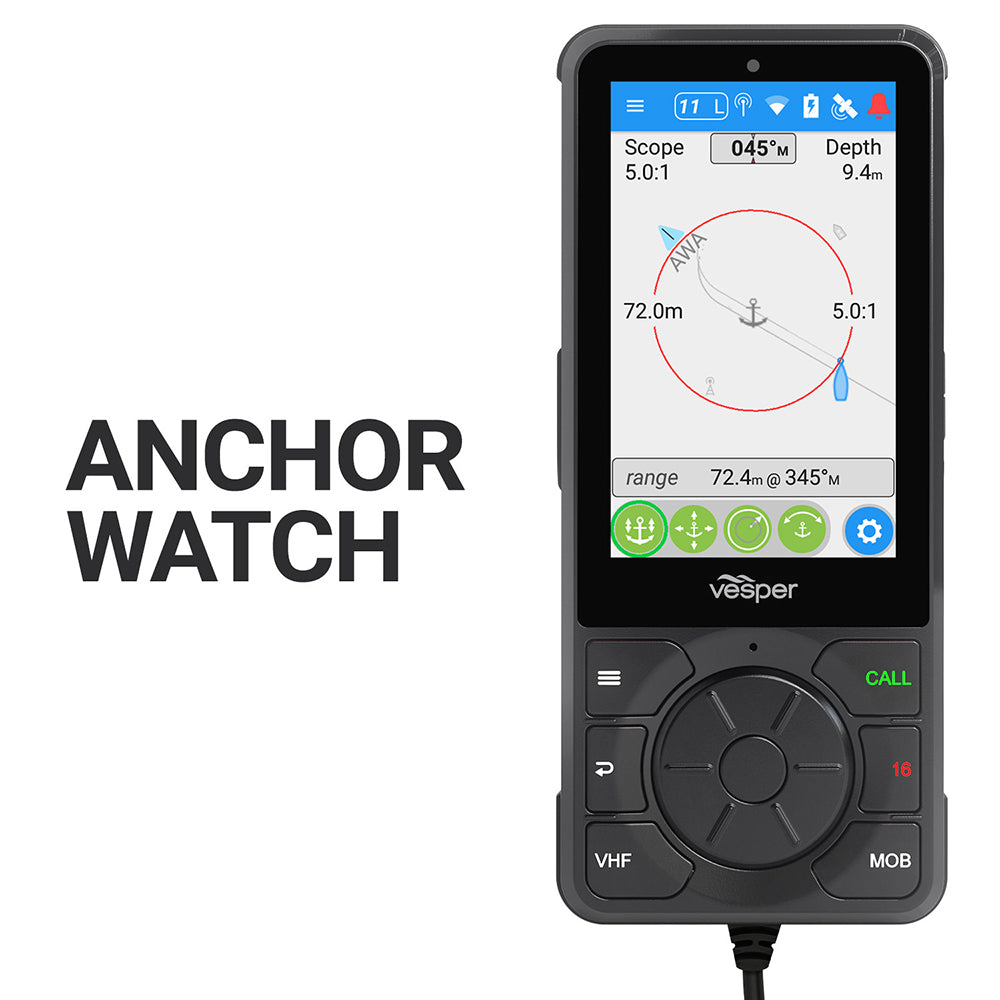

Anchor Watch
- Sleep soundly or explore with abandon knowing that your boat is exactly where you anchored it
- By combining your position and heading, Cortex will determine if your anchor drags
- If your boat moves outside your anchor swing radius the alarm will sound on Cortex handsets and your smartphone
- Receive alerts while ashore via the Cortex Monitor App on your smartphone
- Cortex will keep watch and alert you about changes in water depth, wind speed, or direction while you are anchored
Specifications:
- AIS Class: B
- AIS: Yes
- Antenna Included: Yes
- Built-In GPS: No
- Color: Black
- Display Included: No
- Function: Receive/Transmit
- GPS Included: Yes
- NMEA 2000: Yes
- Remote Mic Capable: No
- Scrambler Capable: No
- Box Dimensions: 6"H x 9"W x 13"L WT: 6.3 lbs
- UPC: 753759306793
Quick Guide (pdf)
