HR Bow Shackle - 10mm Pin Diameter
Features:
Forged bow shackle in HR stainless steel grade (17,4 PH)
Outstanding working and breaking load
A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
WLL: only for industrial applications (lifting i.e…)
CE marking
Applications:
Applications requesting high loads
To be used when ample room is required
Possibility to attach several lines or cables
Do not use for mooring applications
Specifications:
Materials: HR 17.4 PH stainless steel grade
Working load: (lb) 5820 / (kg) 2640
WLL: (lb) 2640 / (kg) 1200
Breaking load: (lb) 13220 / (kg) 6000
Weight: (lb) 0.3 / (g) 136

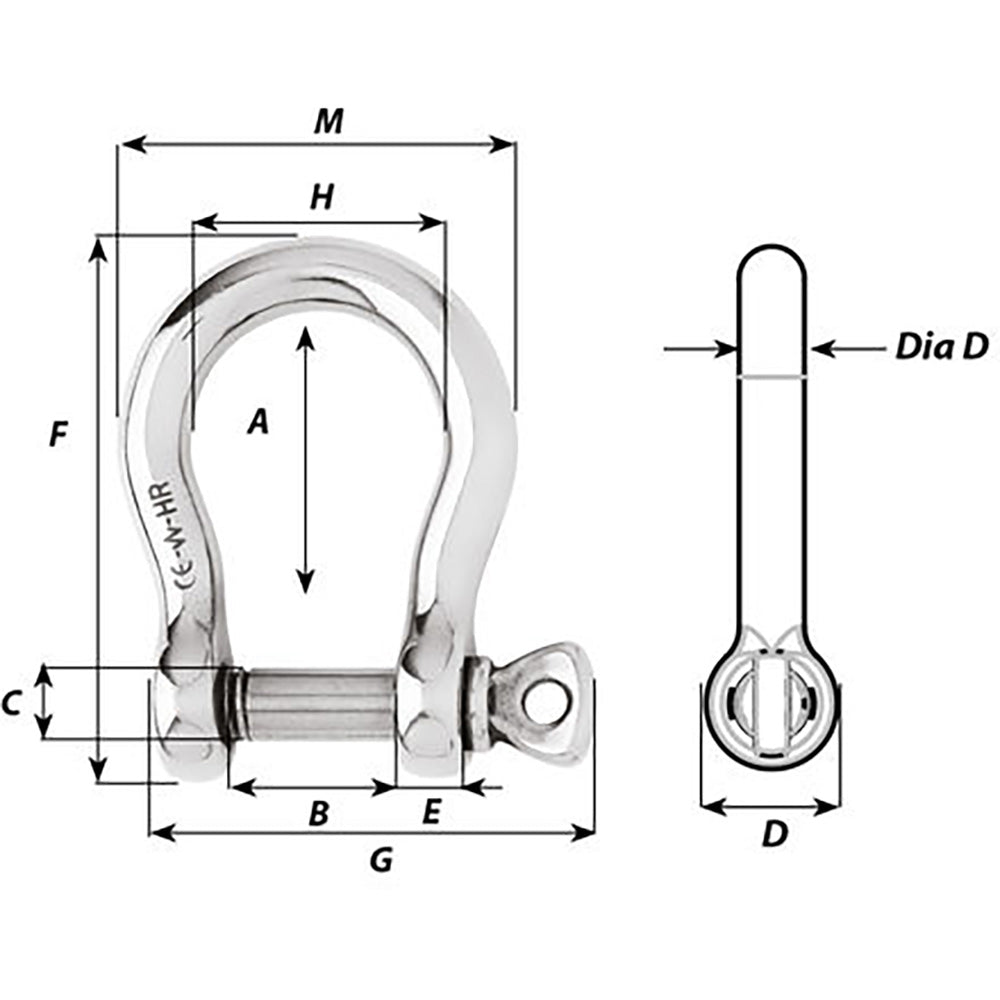

Dimensions:
A: (inch) 1 27/32" / (mm) 47
B: (inch) 55/64" / (mm) 22
C: (inch) 25/64" / (mm) 10
D: (inch) 25/32" / (mm) 20
D diameter: (inch) 15/32" / (mm) 12
E: (inch) 23/64" / (mm) 9
M: (inch) 2 3/64" / (mm) 52
Caption:
Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
High Resistance (HR)
*Sold as an Individual
Quick Guide (pdf)
